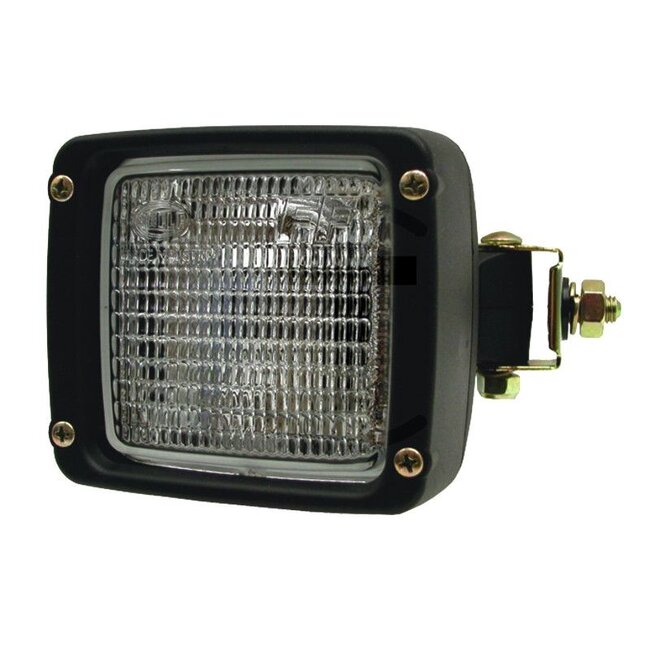

Arbeitsscheinwerfer
| Artikelnummer | 4551GA 996083011 |
|---|---|
| EAN | 9002920085960 |
| Gewicht | 580 g |
| Nennspannung | 12 / 24 V |
| Form | eckig |

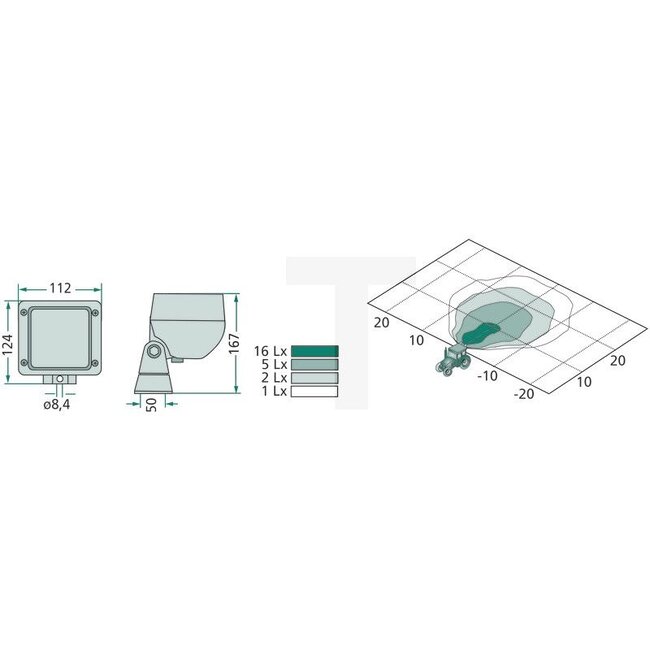

| Abmessungen B x H x T | 112 x 124 x 167 mm |
| Lichtfunktion | Nahfeld-Ausleuchtung |
| Leuchtmittel | H3 |
| Material | Gehäuse: Kunststoff; Lichtscheibe: Glas |
| Einbauort | links / rechts |
| Schutzart | IP5K4K |
| Typ | Ultra Beam H3 |
| Neigungswinkel | ≈ 15 - 20 ° |
| Kabellänge | 2000 mm |
| Zusatzinformationen | • Bodenausleuchtung • mit Drehgelenkfuß • Drehbereich horizontal 130° • Neigungsbereich vertikal 90° • mit Schraube • mit Gummitülle • gehärtete Streuscheibe |
| Leuchtmittel enthalten | nein |
| Lichtaustritt (mm) | □ 83 |
| Montageart | hängend |
| Farbe Gehäuse | schwarz |
Passend für:
Passend für:
Case IH: C 42, C 48, C 55, C 64, C 70, CS 48 (2/97-1/01), CS 52 (1/01-3/04), CS 58 (2/97-1/01), CS 63 (1/01-3/04), CS 68 (3/99-3/04), CS 68 (6/97-3/99), CS 75 (3/99-3/04), CS 75 (6/97-3/99), CS 78 (1/99-1/04), CS 78 (3/96-1/99), CS 80 (1/06-), CS 86 (1/99-1/04), CS 86 (3/96-1/99), CS 90 (1/06-), CS 94 (1/99-1/04), CS 94 (3/96-1/99), CS 100 (1/06-), CS 100 (4/00-7/03), CS 110 (4/00-7/03), CS 110 (4/96-4/00), CS 120 (4/00-7/03), CS 120 (4/96-4/00), CS 130 (4/00-7/03), CS 130 (4/96-4/00), CS 150 (4/00-7/03), CS 150 (4/96-4/00), CVX 120, CVX 130, CVX 150 (7/00-5/03), CVX 170, CVX 1135, CVX 1145, CVX 1155, CVX 1170, CVX 1190, CVX 1195
Steyr: 9080 M, 9090 M
