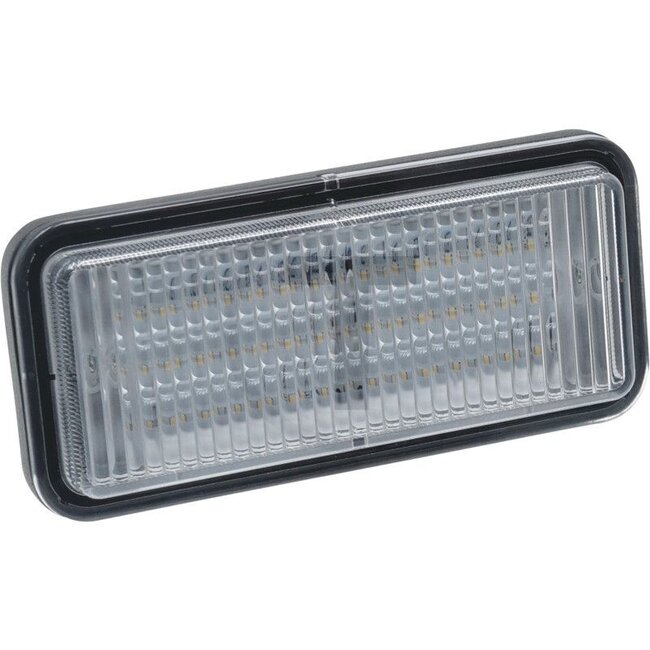

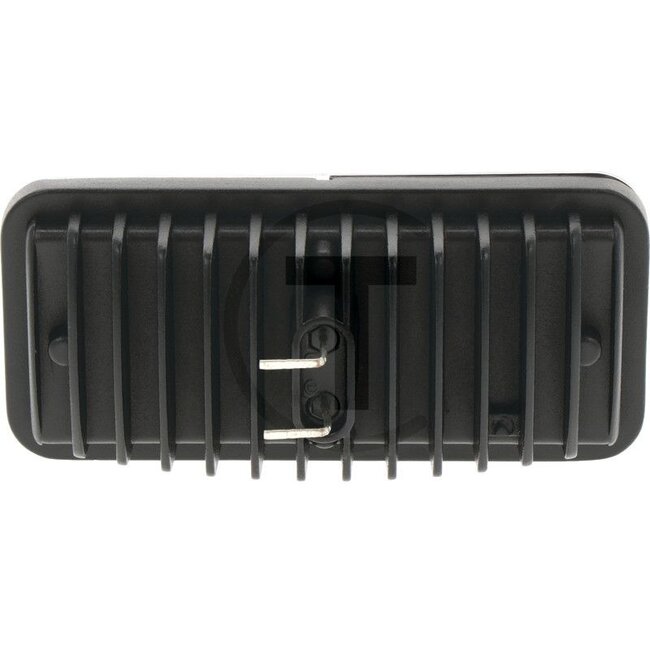

Arbeitsscheinwerfer LED
| Artikelnummer | 7070010302 |
|---|---|
| EAN | 4059139386505 |
| Gewicht | 320 g |
| Nennspannung | 12 / 24 V |
| Spannungsbereich | 10 - 30 V |
| Leuchtmittel | LED |
| Leuchtmittel enthalten | ja |

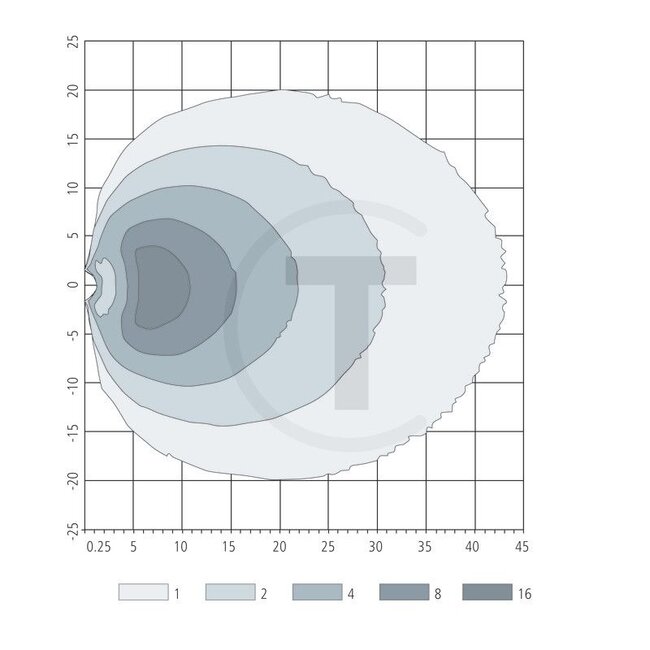

| Lichtfunktion | Fernfeld-Ausleuchtung |

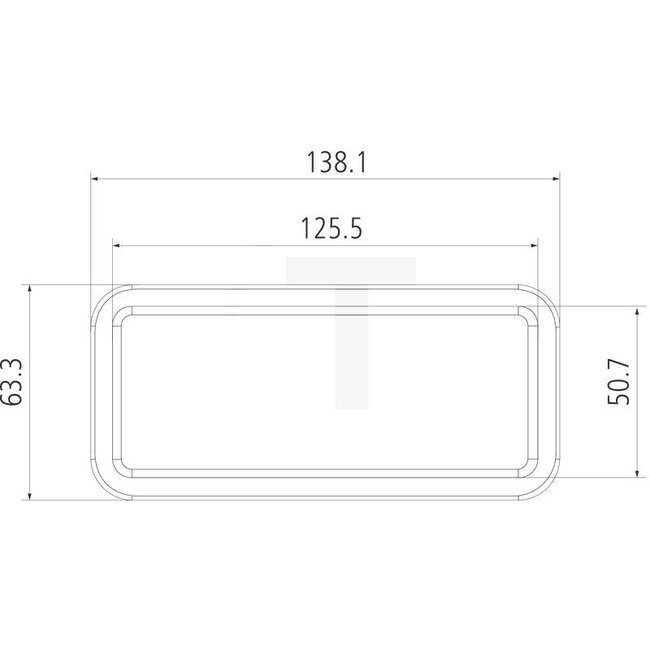

| Abmessungen B x H x T | 138 x 63 x 60 mm |
| Montageart | stehend |
| Anschluss | offene Kabelenden |
| Schutzart | IP67 / IP6K9K |
| Form | eckig |
| Material | Gehäuse: Aluminium; Lichtscheibe: Kunststoff; Halterung: Edelstahl |
| Anzahl LEDs | 30 |
| Prüfzeichen | ECE R10; CE |
| Leistungsaufnahme | 20 W |
| Anzahl Pole | 2 |
| Aufbaumaß | 60 mm |
| Lichtstrom effektiv | ≈ 1900 lm |
| Lichtstrom theoretisch | ≈ 3500 lm |
| EMV | funkentstört nach ECE R10 |
| Farbtemperatur | ≈ 5000 - 6500 K |
| Einsatztemperatur (°C) | -40 / +50 |
| Lichtaustritt | 120 x 50 mm |
Passend für:
Passend für:
John Deere: 4640, 4840, 4050, 4250, 4450, 4650, 4850, 4055, 4255, 4455, 4555, 4755, 4955, 4560, 4760, 4960, 6100, 6200, 6300, 6400, 6506, 6600, 6800, 6900, 6110, 6210, 6310, 6410, 6510, 6610, 6810, 6910, 6910S, 7200, 7600, 7700, 7800, 7610, 7710, 7810, 7210, 8100, 8100T, 8200, 8200T, 8300, 8300T, 8400, 8400T, 8110, 8110T, 8210, 8210T, 8310, 8310T, 8410, 8410T
