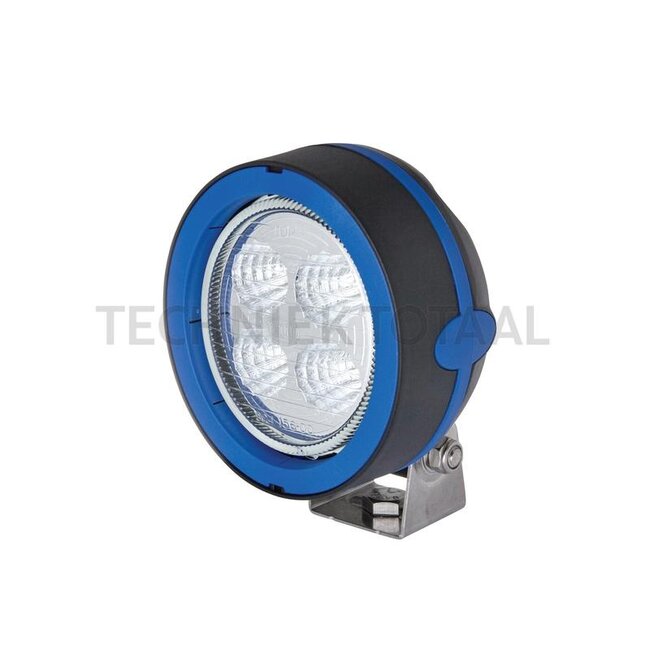

HELLA Arbeitsscheinwerfer LED
Ersetzt: 1GM 996 136-312
Technische Daten:
- Neigungswinkel (°): 3 - 10
- Material: Gehäuse: Aluminium; Lichtscheibe: Kunststoff; Schwenkfuß: rostfreier Stahl; Reflektor: Kunststoff
- Leistungsaufnahme (W): 13
- Prüfzeichen: ECE R10; EMV
- Leuchtmittel: LED
- Lichtaustritt (mm): 83 x 92
- Lichtfunktion: Nahfeld-Ausleuchtung
- Spannungsbereich (V): 9 - 33

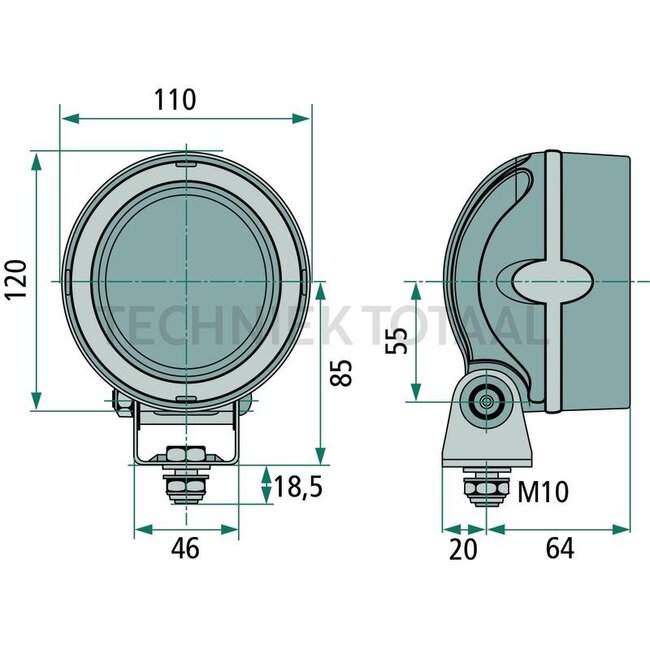

- Abmessungen B x H x T (mm): 110 x 145 x 83
- Nennspannung (V): 12 / 24
- Kabellänge (mm): 2000
- Einsatztemperatur (°C): -40 / +50
- Montageart: stehend; Flanschbefestigung
- Stromstärke (A): 3,6 (12 V) / 1,8 (24 V)
- Farbtemperatur (K): 6500
- Lichtstrom effektiv (lm): 800
- Typ: Mega Beam LED Generation III
- Anzahl LEDs: 4
- Schutzart: IP67 / IP6K9K
- Leuchtmittel enthalten: ja
- Form: oval
- Zusatzinformationen: • mit Kühlrippen • Verpolungsschutz, Überspannungsschutz und Überhitzungsschutz • mit Kabel
- Farbe Gehäuse: schwarz, mit blauem Zierring
- Anschluss: offene Kabelenden
Passend für:
Fendt: Fendt 819 (Typ 832), Fendt 822 (Typ 833), Fendt 824 (Typ 834), Fendt 826 (Typ 835), Fendt 828 (Typ 836), Fendt 922 (Typ 919), Fendt 924 (Typ 922), Fendt 924 (Typ 941), Fendt 927 (Typ 925), Fendt 927 (Typ 942), Fendt 930 (Typ 928), Fendt 930 (Typ 943), Fendt 933 (Typ 931), Fendt 933 (Typ 944), Fendt 936 (Typ 934), Fendt 936 (Typ 945), Fendt 939 (Typ 946)
