FJDynamics 3D control system crawler H39, 10.1" LED screen, IP65
Technical data:

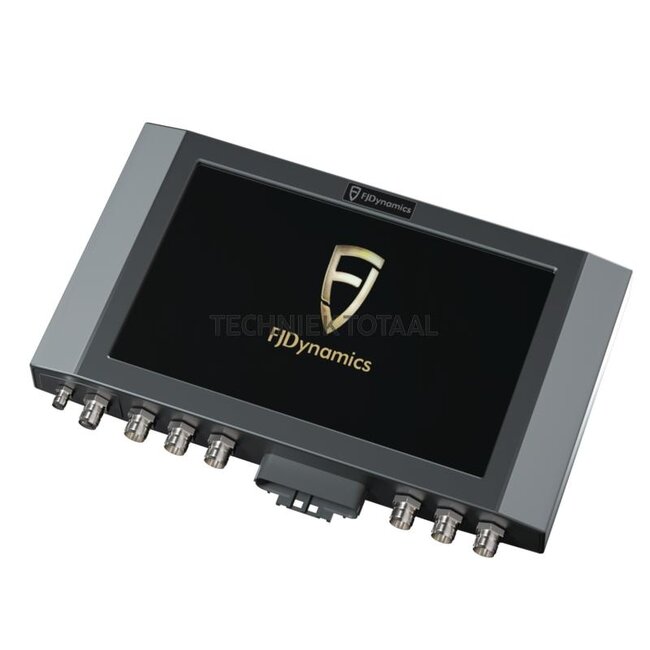

- Technical data: Control terminal: Dimensions: 300x190x43 mm Operating temperature: -30°C to 70°C Screen: 10.1" LED screen IP protection class: IP65 Power consumption: 12-24V Sensor: Max. angular velocity: ≤400 °/s IP protection class: IP67 Operating temperature: -40°C to 85°C Accuracy of operation: 30 mm Accuracy of course determination: 0.1°
- Additional information: With 2 modes for the blade function and visual 3D guidance using real-time animation.

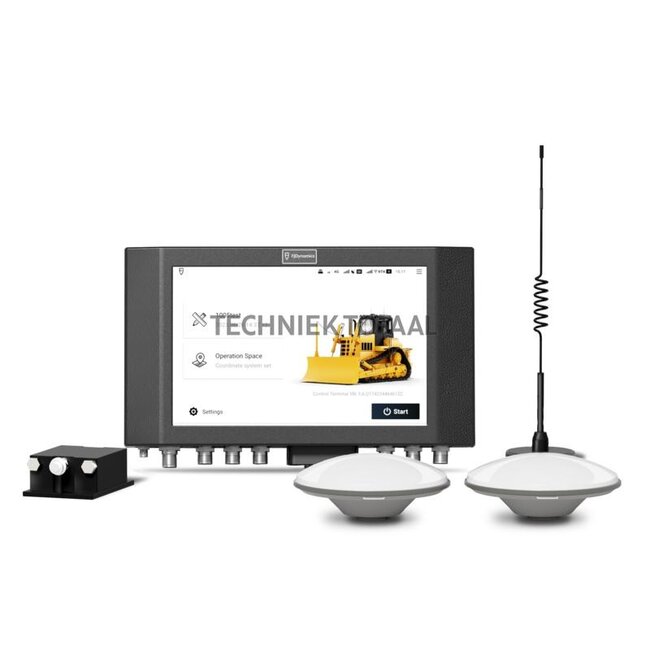

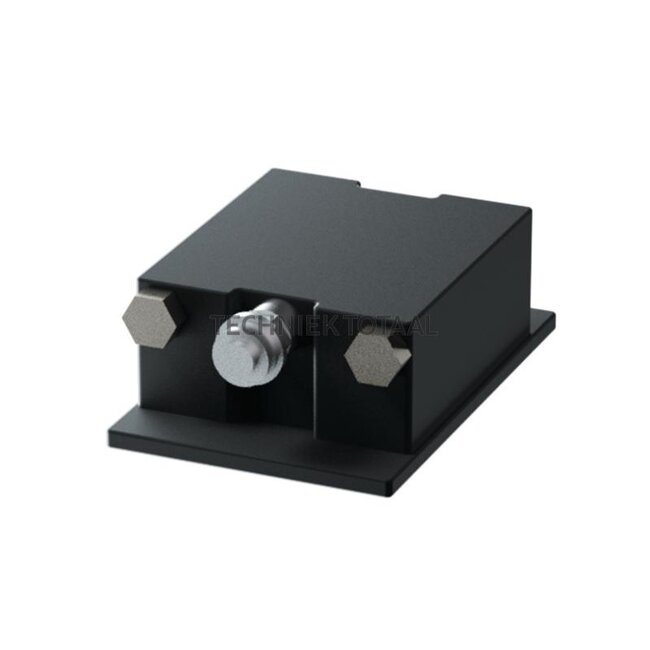

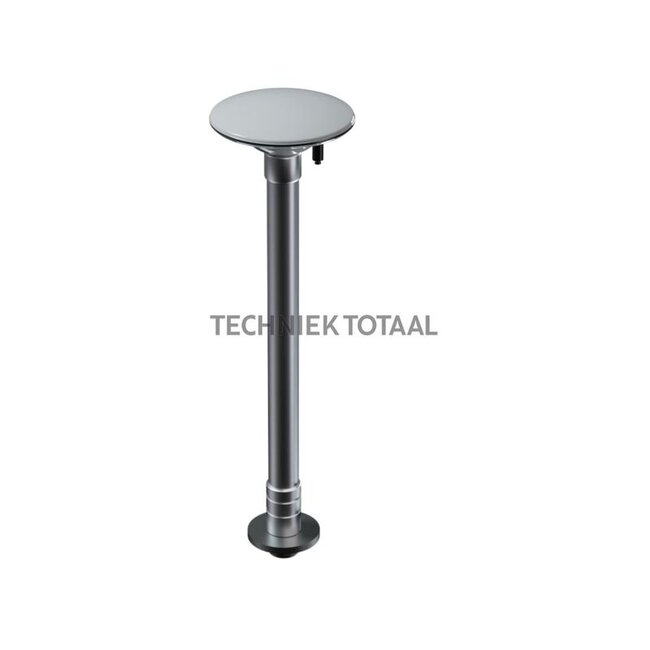

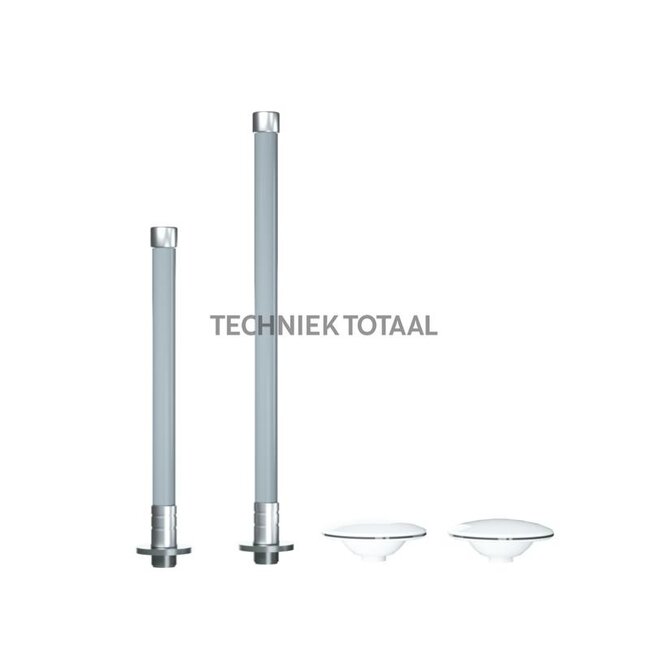

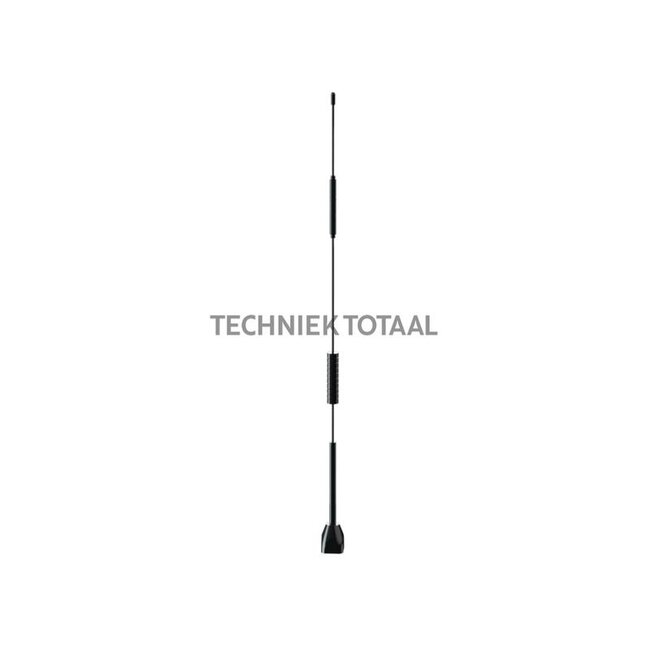

- Included in delivery: Control terminal, GNSS antenna, 4G antenna, 433 MHz antenna Tilt sensor, electronic control module (ECM), switch block Installation material
- Version: Automatic blade control, visual 3D guidance in real time, online support and OTA, work with centimetre precision, even ground, task visualisation
