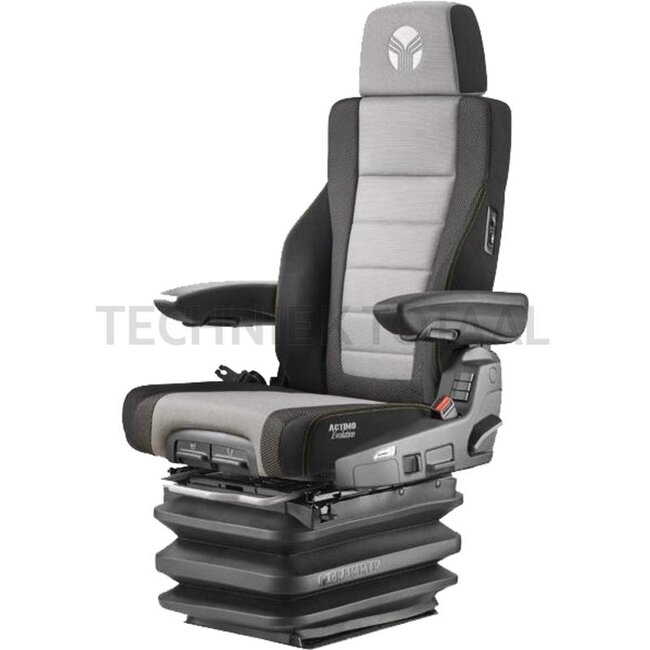

GRAMMER Actimo Evolution

Wheel loader 24V

Replaces: 1462953

Technical data:

• On-board voltage (V): 24
• • Air suspension • APS (automatic positioning system) • Adjustable damper • 100 mm vertical suspension travel • Electronic weight adjustment 50-130 kg • Pneumatic height adjustment, 80 mm • Longitudinal adjustment: 210 mm • Front and rear isolator • Left-hand or front-mounted controls • Active climate control system • Pneumatic lumbar support • Operator presence switch • Height adjustable armrests • Headrest Adjustable backrest side support • Adjustable backrest tilt • Retractable seat belt • 2-stage seat heater • Document box • Adjustable seat cushion depth and tilt • 550 mm or 490 mm seat cushion width • Variable options for excavator and dumper applications
• Version: The premium comfort seat for wheel loaders and excavators is equipped with air suspension to compensate for vibrations and shocks even more effectively, as well as longitudinal insulation to minimise vibrations in the direction of travel. The design of this particularly user-friendly model means that it is extremely ergonomic, which makes operating construction machinery easier, safer and significantly easier on the driver's back. This is made possible by the tried and tested Grammer Design for Use philosophy, the driver restraint system, the active electronic adjustment of the seat to the user’s weight and the active seat climate control.
• To fit: Wheel loaders
• Armrest: Yes
• Seat heater: Yes
• Track gauge (mm): 260
• Seat type: MSG95EL/742

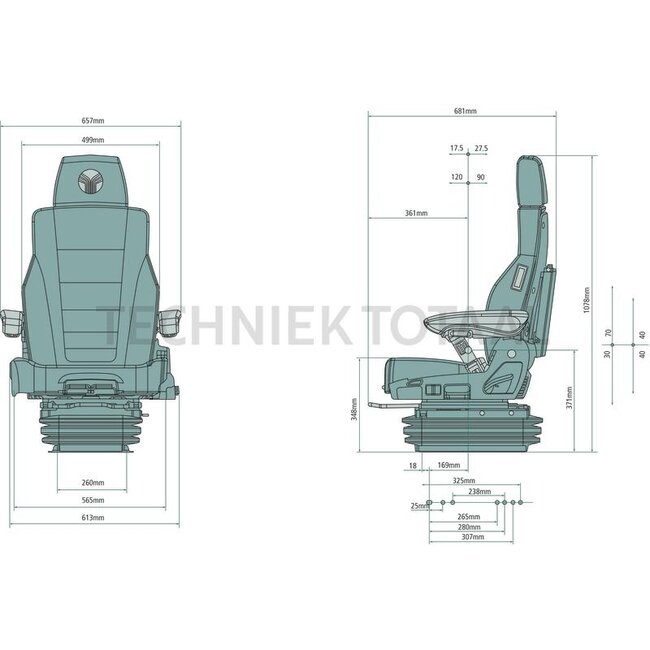

• Length (mm): 681
• Upholstery type: Fabric / new design
• Rückenverlängerung: Yes
• Seat width (mm): 550
• Height (mm): 1078
• Lordosenstütze: Pneumatic
• Suspension: Air suspension
