• Comfort seat with mechanical suspension • Armrests, height adjustable, tilt adjustable and folding, 80 x 320 mm • Damper not adjustable • Suspension travel 100 mm • Mechanical weight adjustment 50-130 kg • 3-stage height adjustment (mechanical), 60 mm • Headrest • Longitudinal adjustment 210 mm • Mechanical lumbar support • Backrest tilt adjustment • Seat cushion width 490 mm • Seat cushion depth and tilt adjustment • Track gauge 260 mm • Control lever bracket box
Upholstery type: PVC

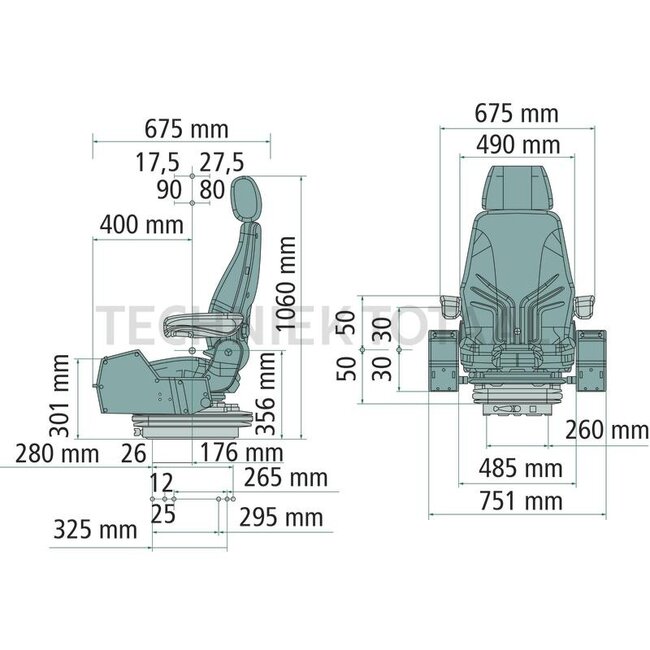

Length (mm): 675
Rückenverlängerung: Yes
Seat contact switch: Optional
Seat width (mm): 490
Version: Standard seat with mechanical suspension The robust entry-level ACTIMO M model from GRAMMER combines cost-effectiveness with comfort features that are not a given elsewhere. The vibration behaviour of the retrofit seat with mechanical suspension can be easily adjusted using a crank for weight adjustment. Together with the three-stage height adjustment, this ensures that the ACTIMO M can be adapted perfectly to any driver and any task. ACTIMO M STHT with control lever brackets GRAMMER offers the ACTIMO M STHT with control lever carrier boxes especially for use in excavators. They enable extremely convenient machine control. The controls for this seat are located at the front for easy accessibility <b>(joysticks not included)</b>.
Seat type: MSG85/722
Lordosenstütze: Mechanical
Height (mm): 1060
Equipment: <b>Prepared for attaching control lever brackets</b>
Armrest: Yes
Restraint system: Optional

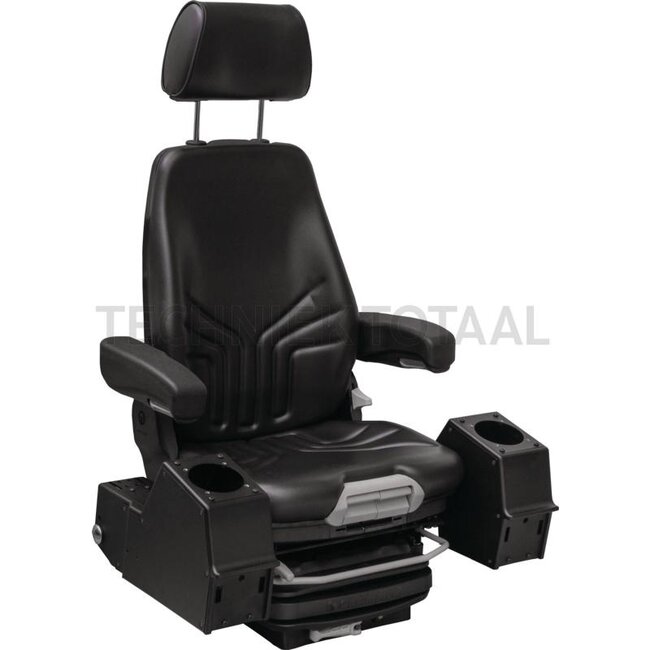

Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats. The image shows a control armrest that fits this seat (not included).
