Seat type: MSG95A/722. Suspension: Air-sprung. Upholstery type: Fabric. Seat contact switch: Optional. Track gauge: 260 mm. Seat width: 490 mm. Joystick console: Optional. Side horizontal suspension: Optional. Fore/aft isolator: Yes. Restraint system: Opt
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 4.7/5 (420 reviews)
Product description

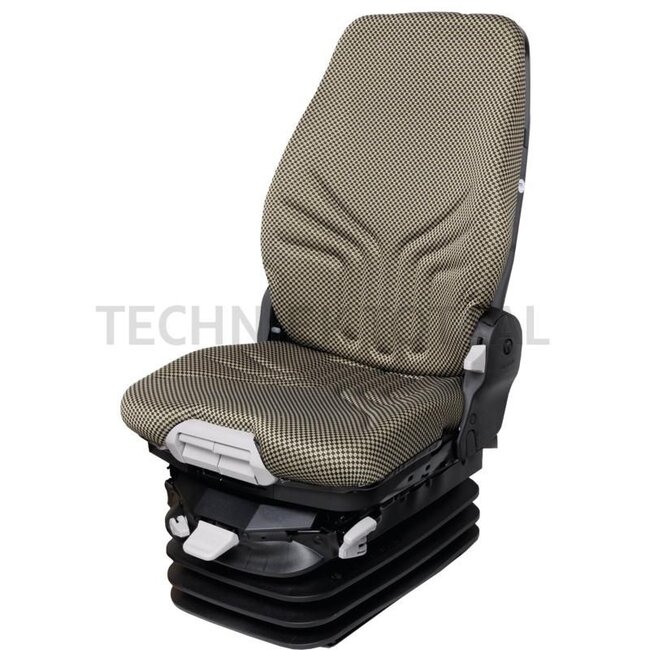

Actimo XL MSG95A/722
Seat type: MSG95A/722
Suspension: Air-sprung
Upholstery type: Fabric
Seat contact switch: Optional
Track gauge (mm): 260
Seat width (mm): 490
Joystick console: Optional
Side horizontal suspension: Optional
Fore/aft isolator: Yes
Restraint system: Optional
On-board voltage (V): 12
Seat heater: Optional
Rotation: Optional

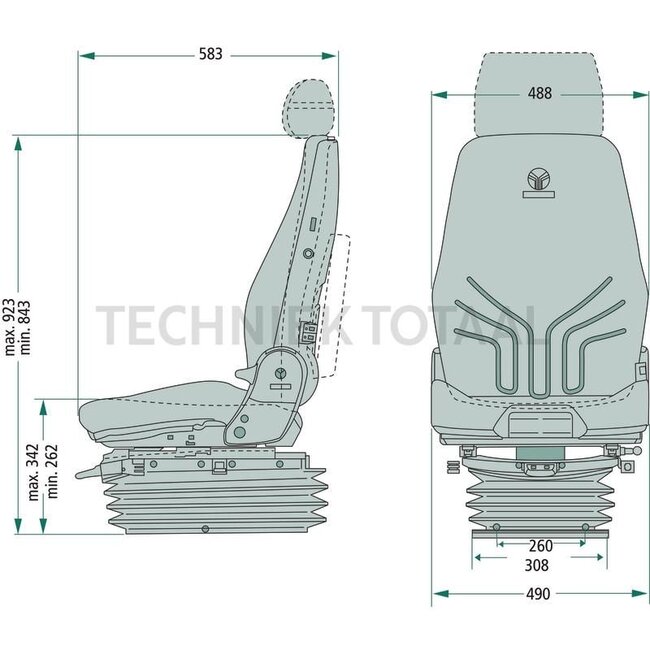

Length (mm): 583
Height (mm): 843 → 923
Technical data: - Air-sprung super-comfort seat with 12V compressor - APS: automatic positioning system - Front controls - Adjustable damper - Suspension travel 100 mm - Weight adjustment, automatic - Height adjustment 80 mm stepless (air-supported) - Passive air conditioning system - Longitudinal adjustment 210 mm - Longitudinal horizontal suspension lockable - 2pneumatic lumbar support - backrest tilt adjustment - seat cushion depth and tilt adjustment - seat cushion width 490 mm - without armrest and headrest
Version: Standard seat with automatic positioning system Pneumatic suspension, automatic positioning system, adjustable damper, longitudinal/horizontal suspension - the ACTIMO XL has all the features that guarantee excellent vibration comfort and therefore comfortable and fatigue-free sitting. The automatic weight adjustment also eliminates the need for time-consuming adjustment of the seat to the operator's weight - a major advantage when changing machine users.
