Product description

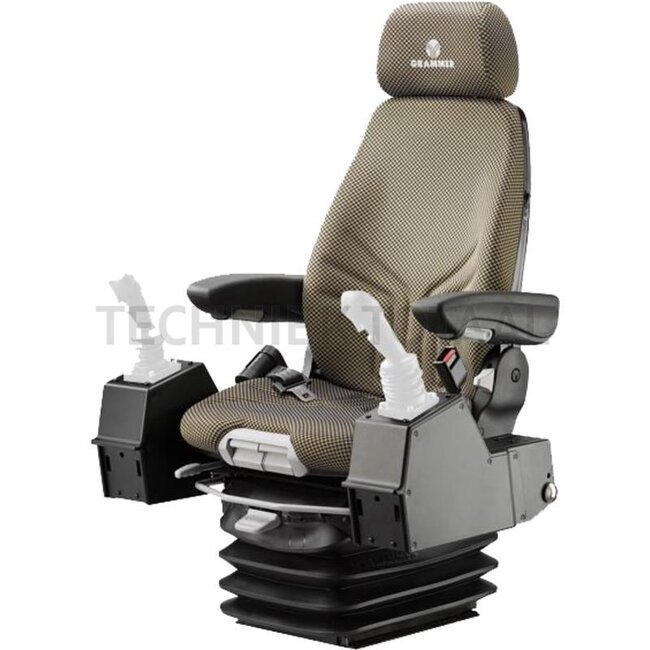

Actimo XL MSG95A/722
Seat type: MSG95A/722
Suspension: Air-sprung
Upholstery type: Fabric
Seat contact switch: Yes

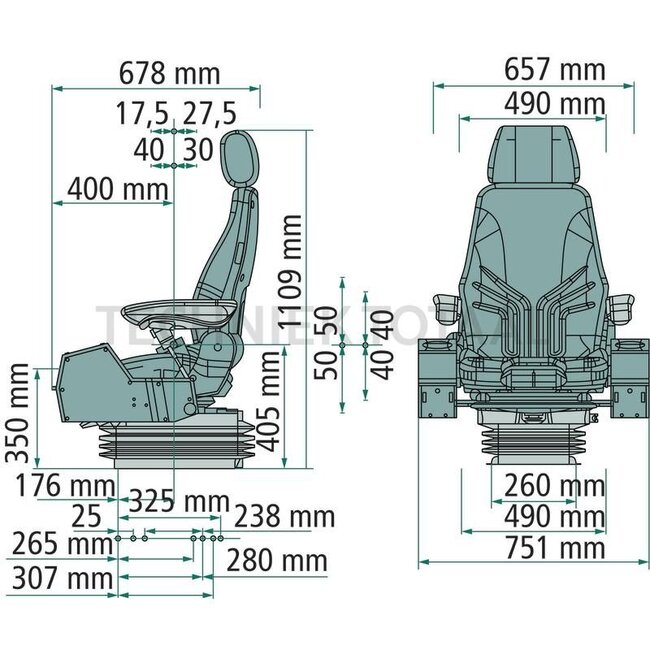

Track gauge (mm): 260
Seat width (mm): 490
Joystick console: Yes
Fore/aft isolator: Yes
Restraint system: Yes
On-board voltage (V): 24
Seat heater: Yes
Length (mm): 629
Height (mm): 1076
Technical data: - Air-sprung super-comfort seat with 24V compressor - APS: automatic positioning system - Armrests, height-adjustable, and tilt-adjustable 80 x 380 mm - Damper not adjustable - Suspension travel 100 mm - Automatic weight adjustment 50 - 130 kg automatic - Height adjustment 80 mm stepless (air-supported) - Headrest - Longitudinal adjustment 210 mm - Longitudinal horizontal suspension lockable - Mechanical lumbar support - Backrest tilt adjustment - Lumbar support mechanical - Backrest tilt adjustmenttilt adjustment - Restraint system - Seat heating - Seat cushion depth and tilt adjustment - Seat cushion width 490 mm - Seat contact switch - Control lever support box
Equipment: Preparation for attaching control lever carriers
Version: Standard seat with automatic positioning system Pneumatic suspension, automatic positioning system, adjustable damper, longitudinal/horizontal suspension - the ACTIMO XL has all the features that guarantee excellent vibration comfort and therefore comfortable, fatigue-free sitting. The automatic weight adjustment also eliminates the need for time-consuming adjustment of the seat to the operator's weight - a major advantage when the machine is used by different operators. ACTIMO XL STHT with control lever carriers GRAMMER offers the ACTIMO XL STHT with control lever carrier boxes especially for use in excavators. They enable particularly convenient control of the machine. The controls of this seat are located at the front, ensuring good accessibility(joysticks not included).
