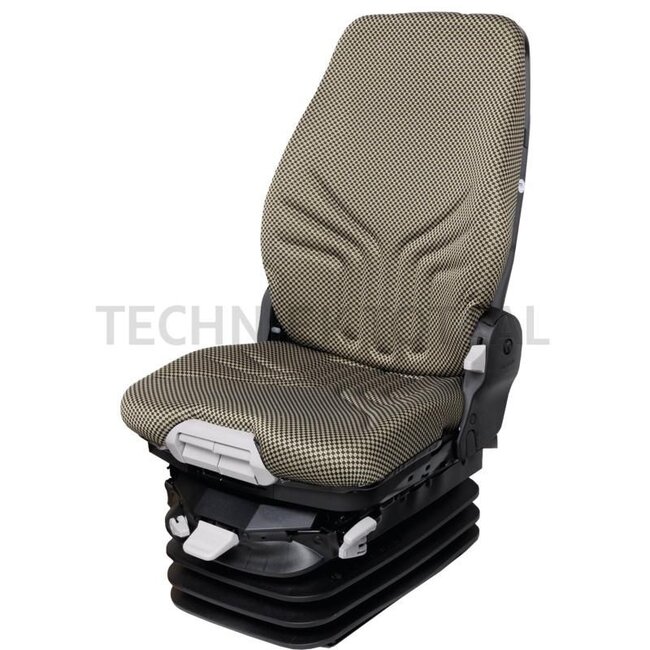

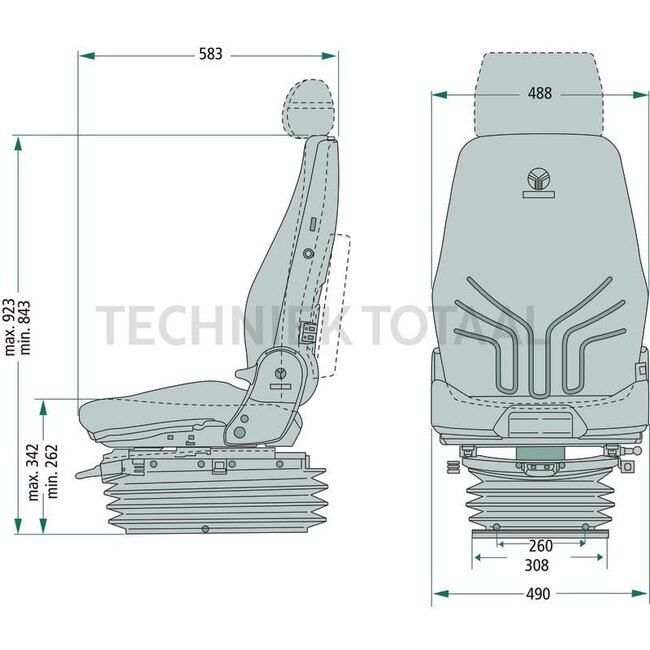

The Grammer Actimo XL MSG95A/722 is an air-sprung seat with fabric upholstery and a seat width of 490 mm. The seat is equipped with an automatic positioning system (APS), a 24 V compressor and a pneumatic lumbar support. The suspension travel is 100 mm, the height adjustment 80 mm stepless and the longitudinal adjustment 210 mm. Fore/aft isolator is present; the seat has a track gauge of 260 mm, a length of 583 mm and a height of 843 to 923 mm. Restraint system, seat heater, armrest, joystick console and backrest extension are optional.
| Article number | 2401294562 |
|---|---|
| Weight | 100 kg |
| Seat type | MSG95A/722 |
| Suspension | Air-sprung |
| Upholstery type | Fabric |
| Seat contact switch | Optional |
| Track gauge | 260 mm |
| Seat width | 490 mm |
| Joystick console | Optional |
| Side horizontal suspension | Optional |
| Fore/aft isolator | Yes |
| Restraint system | Optional |
| On-board voltage | 24 V |
| Seat heater | Optional |
| Rotation | Optional |
| Length | 583 mm |
| Height (mm) | 843 → 923 |
| Technical data | - Air-sprung super-comfort seat with 24V compressor - APS: automatic positioning system - Front controls - Adjustable damper - Suspension travel 100 mm - Weight adjustment, automatic - Height adjustment 80 mm stepless (air-supported) - Passive air conditioning system - Longitudinal adjustment 210 mm - Longitudinal horizontal suspension - 2-fold pneumatic lumbar support - Backrest tilt adjustment - Seat cushion depth and tilt adjustment |
| Version | Standard seat with automatic positioning system Pneumatic suspension, automatic positioning system, adjustable damper, longitudinal/horizontal suspension - the ACTIMO XL has all the features that guarantee excellent vibration comfort and therefore comfortable, fatigue-free sitting. Thanks to the automatic weight adjustment, the time-consuming adjustment of the seat to the driver's weight is also no longer necessary - a major advantage for changing machine users. |
| Armrest | Optional |
| Lordosenstütze | Pneumatic |
| Rückenverlängerung | Optional |
