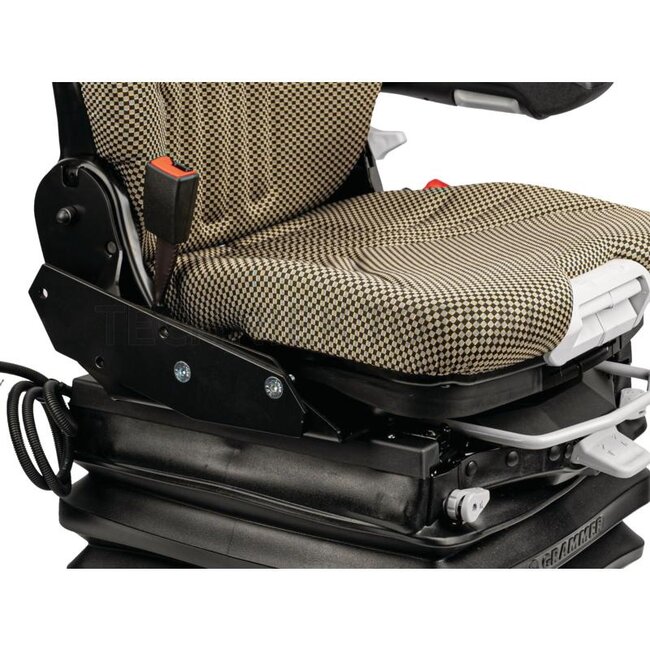

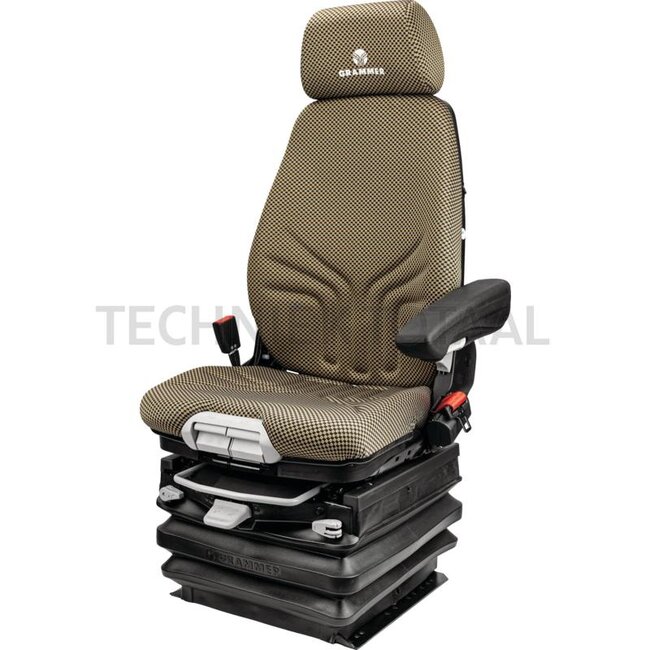

GRAMMER Actimo XXL

MSG97AL/722

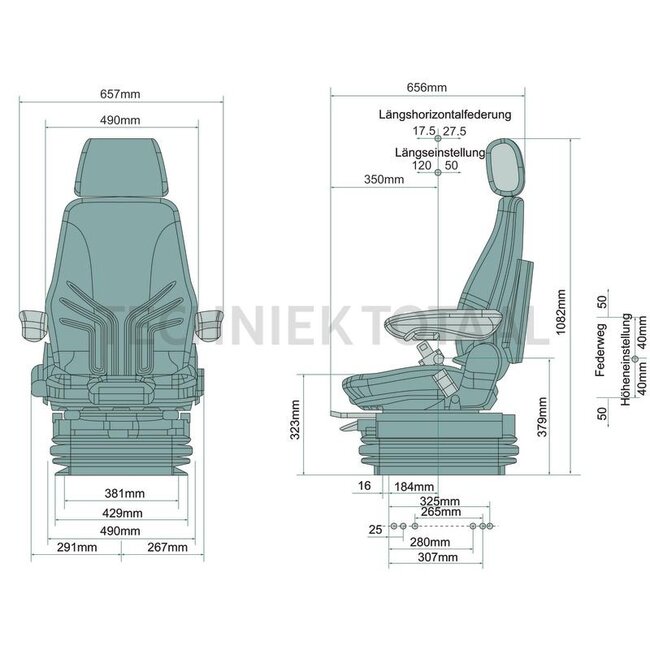

Technical data:

• Rotation: Optional
• Length (mm): 656
• Version: Comfort seat with extra wide pneumatic suspension With the ACTIMO XXL, ergonomics and comfort are a top priority. Thanks to its extra wide pneumatic suspension, this retrofit seat is ideal for attaching large, heavy multifunction armrests. Control lever brackets or control lever bracket boxes are available as optional equipment. The low-frequency suspension (which is designed for the vibrations experienced by large construction machinery), the automatic positioning system and the adjustable damper provide a high level of vibration comfort. With its passive seat climate control and standard seat heater, the ACTIMO XXL also creates a pleasant working environment in any weather.
• Upholstery type: Fabric
• Seat heater: Yes
• Joystick console: Yes
• Armrest: Optional
• Fore/aft isolator: Yes
• Seat type: MSG97AL/722
• On-board voltage (V): 24
• Seat contact switch: Yes
• Suspension: Air suspension
• Height (mm): 1082
• To fit: Caterpillar series 926M to 938M
• Side horizontal suspension: Yes
• Restraint system: Yes
• Track gauge (mm): 381
• Lordosenstütze: Pneumatic
• • Super comfort seat with low-frequency air suspension and compressor • APS: automatic positioning system • Front controls • Adjustable damper • Extra wide, reinforced suspension • Suspension travel 100 mm • Automatic weight adjustment • Height adjustment 80 mm, continuous (air-assisted) • Passive climate control system • Longitudinal adjustment 170 mm • Lockable fore/aft isolator • 2-way pneumatic lumbar support • Backrest and tilt adjustment • Seat heater • Seat cushion depth and tilt adjustment • Seat cushion width 490 mm
• Seat width (mm): 490
• Rückenverlängerung: Optional
