GRAMMER Actimo XXL MSG97AL/722 - 2401294779CATKK | To fit: Caterpillar series 926M to 938M | Suspension: Air suspension | Upholstery type: Fabric | Seat contact switch: Optional | Track gauge: 381 mm | Seat width: 490 mm | Joystick console: Optional | Side horizo
€4.634,30
€3.905,97Incl. VAT
In stock
€3.228,07
Excl. VAT
To fit: Caterpillar series 926M to 938M. Suspension: Air suspension. Upholstery type: Fabric. Seat contact switch: Optional. Track gauge: 381 mm. Seat width: 490 mm. Joystick console: Optional. Side horizontal suspension: Optional. Fore/aft isolator: Yes.
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 4.7/5 (420 reviews)
Product description
Actimo XXL MSG97AL/722
To fit: Caterpillar series 926M to 938M
Suspension: Air suspension
Upholstery type: Fabric
Seat contact switch: Optional
Track gauge (mm): 381
Seat width (mm): 490
Joystick console: Optional
Side horizontal suspension: Optional
Fore/aft isolator: Yes
Restraint system: Yes
On-board voltage (V): 24
Seat heater: Yes
Rotation: Optional

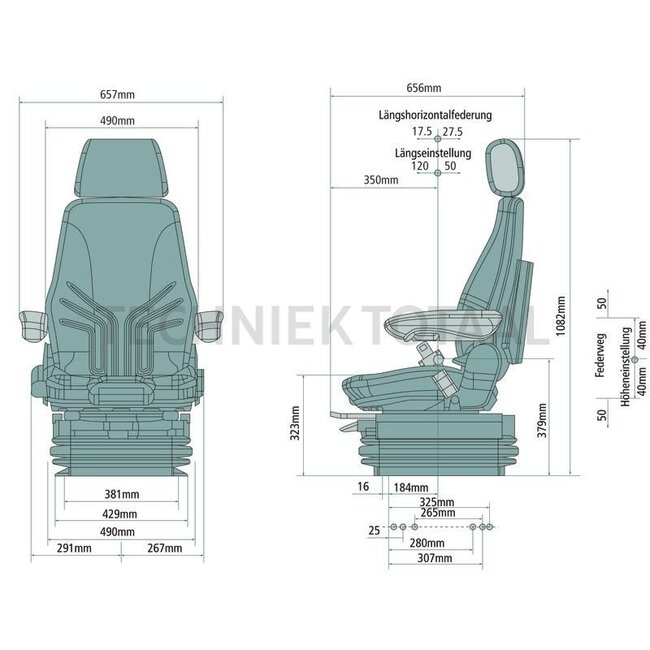

Length (mm): 656
Height (mm): 1082
Seat type: MSG97AL/722
Technical data: • Super comfort seat with low-frequency air suspension and compressor • APS: automatic positioning system • Front controls • Adjustable damper • Extra wide, reinforced suspension • Suspension travel 100 mm • Automatic weight adjustment • Height adjustment 80 mm, continuous (air-assisted) • Passive climate control system • Longitudinal adjustment 170 mm • Fore/aft isolator can be locked • 2-way pneumatic lumbar support • Backrest and tilt adjustment • Seat heater • Seat cushion depth and tilt adjustment • Seat cushion width 490 mm
Version: Comfort seat with extra-wide pneumatic suspension With the ACTIMO XXL, ergonomics and comfort are a top priority. Thanks to its extra-wide pneumatic suspension, this retrofit seat is ideal for attaching large, heavy multifunction armrests. Control lever brackets or control lever bracket boxes are available as optional equipment. The low-frequency suspension (which is designed for the vibration behaviour of large construction machinery), the automatic positioning system and the adjustable damper provide a high level of vibration comfort. With its passive seat climate control and standard seat heater, the ACTIMO XXL also creates a pleasant working environment in any weather.
