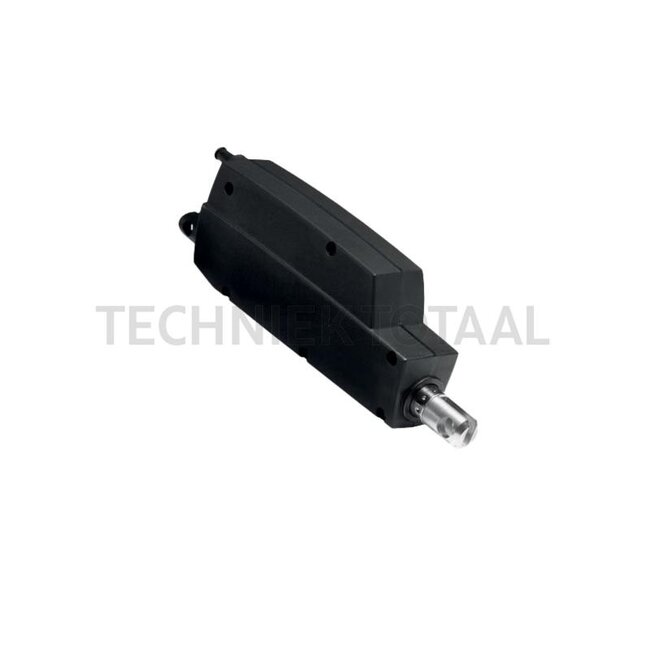

LINAK Actuator 12V IC+P 100 mm 200 N

Replaces: 121T00-31001228

Technical data:

• Additional information: Installation length: 245 mm Cable length: 2300 mm straight Cable end: open wire ends Piston head: slotted, O 10.2 mm, plastic Rear attachment: slotted, O 10.2 mm, plastic, 0° Feedback: Potentiometer 0 - 10 V Colour: black End position shutdown: integrated + end position signals
• Stroke: 100 mm
• Tensile force (N): 200
• Protection class: IP66
• Length (mm): 245
• Nominal voltage (V): 12
• Areas of application: LA12
• Compressive force (N): 200
