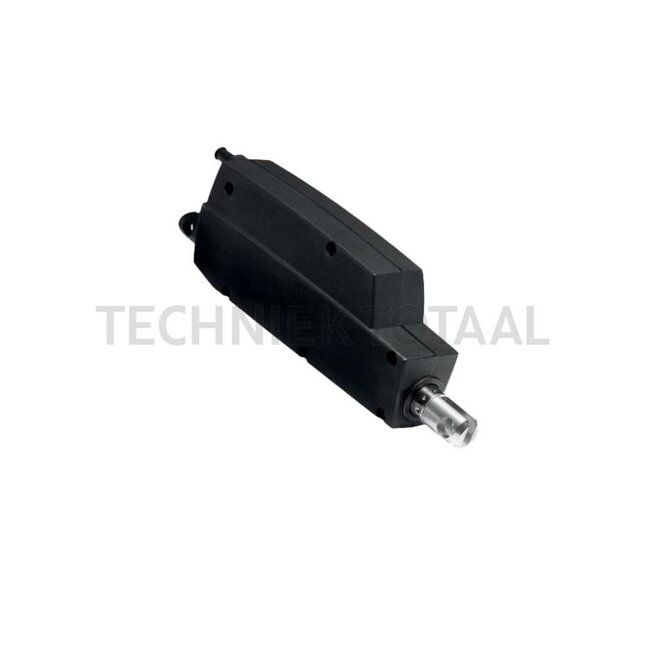

LINAK Actuator 24V IC+P 70 mm 750 N

Replaces: 121T00-10702428

Technical data:

• Stroke: 70 mm
• Protection class: IP66
• Additional information: Installation length: 245 mm Cable length: 2300 mm straight Cable end: open wire ends Piston head: slotted, O 10.2 mm, plastic Rear attachment: slotted, O 10.2 mm, plastic, 0° Feedback: Potentiometer 0 - 10 V Colour: black End position shutdown: integrated + end position signals
• Areas of application: LA12
• Tensile force (N): 750
• Compressive force (N): 750
• Length (mm): 245
• Nominal voltage (V): 24
