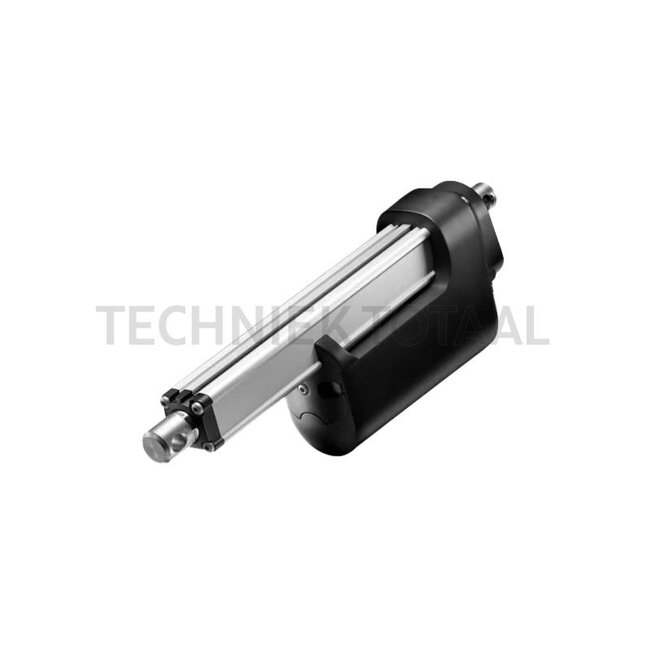

LINAK Actuator LA36 24 V, 6800 N, stroke 100 mm, 300 mm, EOS, Dual Hall | 361201000H01BA-611H30300A00000

LINAK Actuator 24V EOS DH 100 mm 6800 N

Replaces: 361201000H01BA-611H30300A00000

Technical data:

• Areas of application: LA36
• Length (mm): 300
• Protection class: IP66
• Nominal voltage (V): 24
• Tensile force (N): 6800
• Compressive force (N): 6800
• Stroke: 100 mm
• Additional information: Cable length: without Piston head: slotted, O 12.2 mm, slot 7 mm Rear attachment: slotted, O 12.2 mm, slot 7 mm, 0° Feedback: Dual Hall End position shutdown: integrated + end position signal
