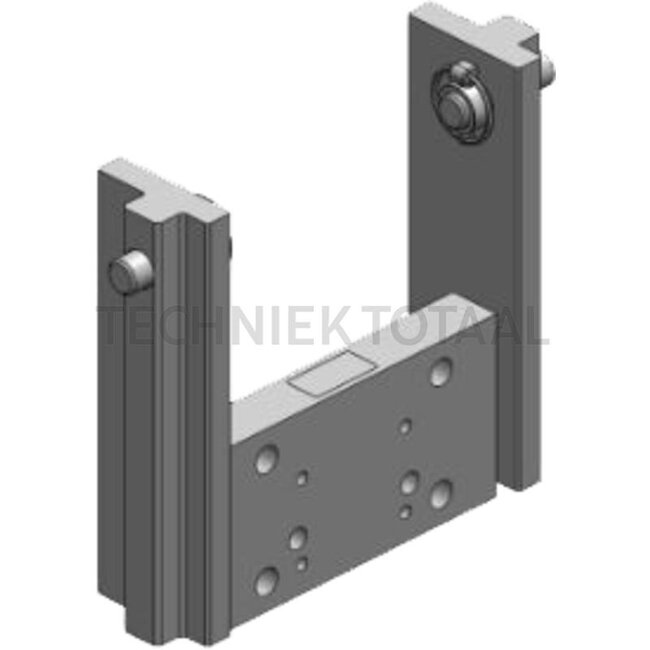

Scharmüller Adapter plate

Technical data:

• Hole (mm): M20
• Category: Inserts for bearing supports
• Assembly notes: For bottom attachment
• No. of holes: 10
• Hole pattern (mm): 140 x 80
• Detent pin Ø (mm): 22
• Load capacity (kg): 2000
• Rail width (mm): 309
• Version: Adapter plates
• Description: Can be disconnected with pin
• D-value (kN): 89,3
• Colour: AGCO grey
• Guide width (mm): 30

Suitable for:

Case IH: Puma 185 (12/10-), Puma 200 (12/10-), Puma 185 Multicontroller Stage V, Puma 200 Multicontroller Stage V, Puma 220 CVX Stage V, Puma 220 Multicontroller Stage V, Puma 240 CVX Stage V

New Holland: T7.195S Standard Stage V (1/19-), T7.215S Standard Stage V (1/19-), T7.230 Stage V, T7.245 Stage V, T7.260 Stage V, T7.230 Autocommand Stage V, T7.245 Autocommand Stage V, T7.260 Autocommand Stage V, T7.270 Autocommand Stage V

Steyr: 6185 Absolut CVT Stage V, 6200 Absolut CVT Stage V, 6220 Absolut CVT Stage V, 6240 Absolut CVT Stage V, 6260 Absolut CVT Stage V, 6280 Absolut CVT Stage V
