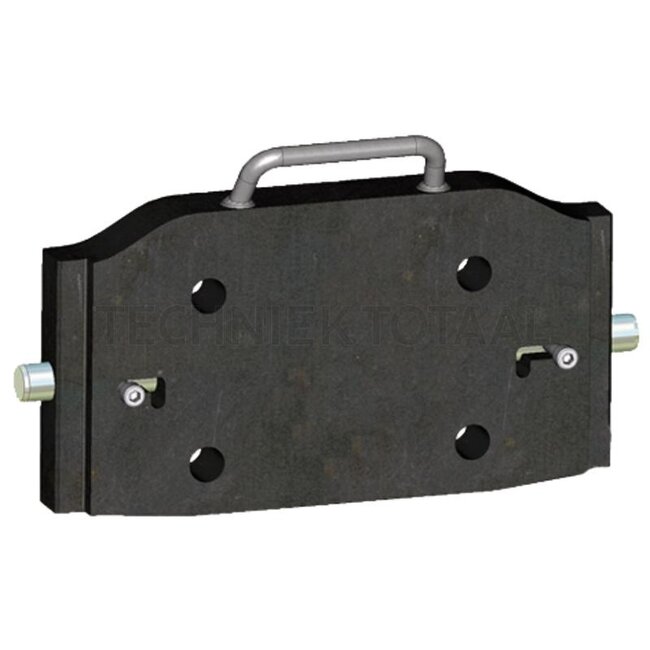

Walterscheid Adapter plate
Replaces: 8005026
Technical data:
- Hole (mm): M20
- Detent pin Ø (mm): 25
- D-value (kN): 89,3
- Assembly notes: The vehicle part support distance (from the centre of the coupling plate to the centre of the coupling point) may be up to 222 mm.
- Load capacity (kg): 2800
- Colour: Black
- Guide width (mm): 38
- Description: The coupling plate is a height-adjustable sliding plate that can only be operated in hitch supports with locking rails. It is prepared for attaching flange couplings or other connecting devices with a flange. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: height-adjustable, forged material, suitable for a wide range of couplings that can be flange-mounted
- Rail width (mm): 333
- Hole pattern (mm): 140 x 80
Suitable for:
Same: Dorado 86
