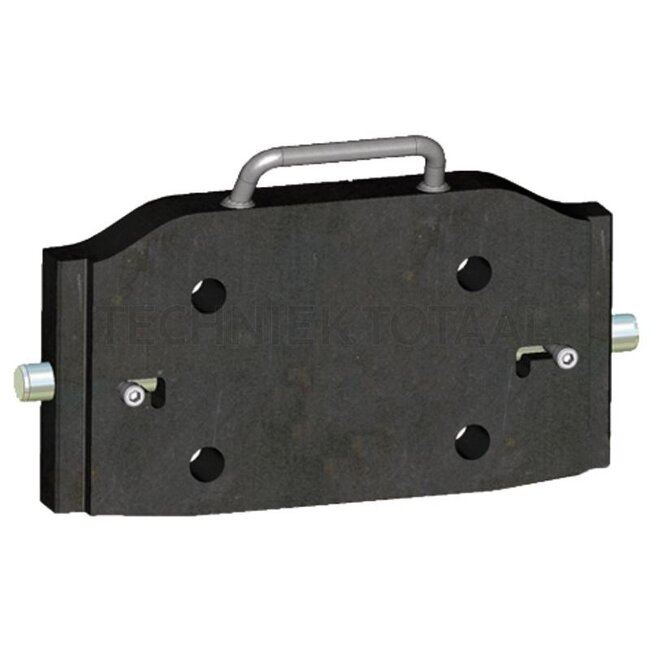

Walterscheid Adapter plate

Replaces: 8005020

Technical data:

• Hole pattern (mm): 140 x 80
• Guide width (mm): 38
• Detent pin Ø (mm): 25
• Rail width (mm): 310
• Description: The coupling plate is a height-adjustable sliding plate that can only be operated in hitch supports with locking rails. It is prepared for attaching flange couplings or other connecting devices with a flange. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: height-adjustable, forged material, suitable for a wide range of couplings that can be flange-mounted
• D-value (kN): 89,3
• Hole (mm): M20
• Load capacity (kg): 2800
• Assembly notes: The vehicle part support distance (from the centre of the coupling plate to the centre of the coupling point) may be up to 222 mm.
• Colour: Black

Suitable for:

Deutz-Fahr: Agrolux 67

Landini: Power Farm 60, Power Farm 75, Power Farm 80, Power Farm 85, Power Farm 90, Power Farm 95, Power Farm 100, Power Farm 105, Power Farm 110
