Product description

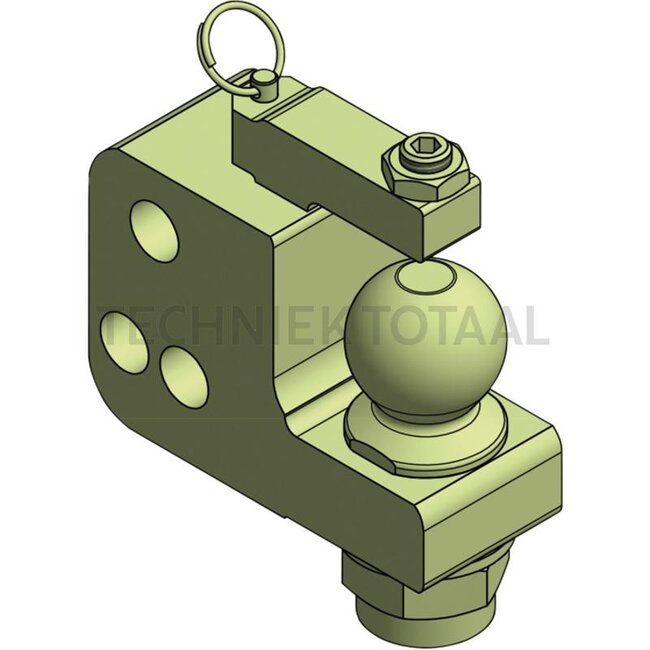

Walterscheid Forced steering adapter
Replaces: 8005409
Technical data:
Lock: ball 50
Included in delivery: Includes 1x forced steering component 770ZWL50KUN-W15. Fixing elements and intermediate plates are not included and must be ordered at the same time if required.
Assembly notes: Both ends
Description: Forced steering components are used to transfer steering forces between the towing vehicle and agricultural and forestry trailers. The central element for connection to the trailer steering rod is a 50 mm ball or a 30 mm bolt. A spherical cap 50 in accordance with ISO 26402 or a spherical plain bearing 30 in accordance with DIN ISO 12240-4 is mounted as a counterpart on the steering cylinder piston rods of the forced steering systems. Advantages: suitable for Walterscheid Easy Fit Steering System
