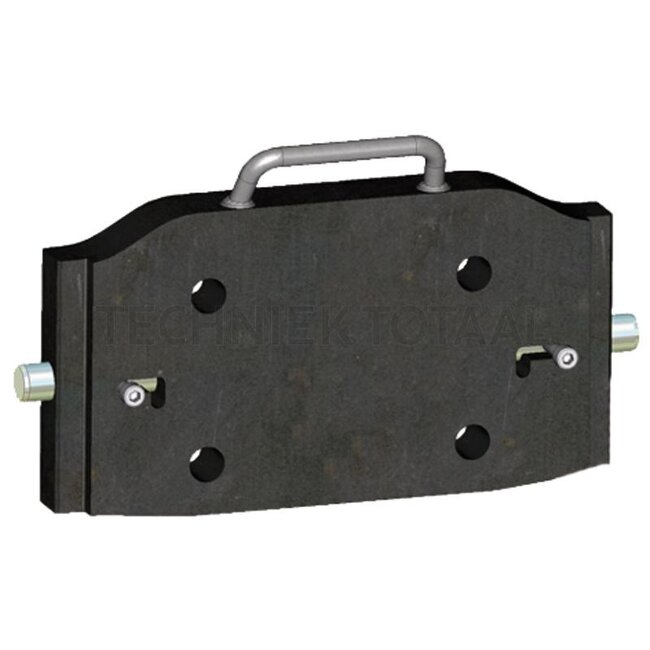

Walterscheid Adapter plate rail width 314 mm, hole pattern 140 x 80 mm, M20 | 8005047
€836,11
€710,69 Incl. 21% VAT
€587,35 Excl. VAT
Delivery time on request
Rail width: 314 mm. Guide width: 30 mm. Detent pin Ø: 20 mm. Load capacity: 2800 kg. D-value: 89,3 kN. Hole pattern: 140 x 80 mm. Hole: M20 mm. Colour: Black. Description: The coupling plate is a height-adjustable sliding plate that can only be operated i Read more.
Description: The coupling plate is a height-adjustable sliding plate that can only be operated in hitch supports with locking rails. It is prepared for attaching flange couplings or other connecting devices with a flange. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: height-adjustable, forged material, suitable for a wide range of couplings that can be flange-mounted
Assembly notes: The vehicle part support distance (from the centre of the coupling plate to the centre of the coupling point) may be up to 222 mm.
Passend voor:
Zetor: 8005047, Serie Proxima, Proxima 65, Proxima 70, Proxima 75, Proxima 80, Proxima 90, Proxima 100, Serie Proxima Plus, Proxima Plus 90, Proxima Plus 100, Proxima Plus 110, Serie Proxima Power, Proxima Power 90, Proxima Power 100, Proxima Power 110, Proxima Power 120
New Holland: 8005047, Serie T4000, T4020, T4030, T4040, T4050
Lamborghini: 8005047, Serie Crono, Crono 90, Crono 100, Serie Crono Com3, Crono 80 Com3, Serie Crono Target, Crono 70 Target
Deutz-Fahr: 8005047, Serie 4 (Farmotion Tier 4i), 4070 E, 4080 E, 4090 E, 4100 E
McCormick: 8005047, Serie X4, X4.060 (2021), X4.070 (2021), X4.080 (2021)
Claas: 8005047, Serie Axos, AXOS 310, AXOS 320, AXOS 330, AXOS 340, Serie Elios, ELIOS 210, ELIOS 220, ELIOS 230
