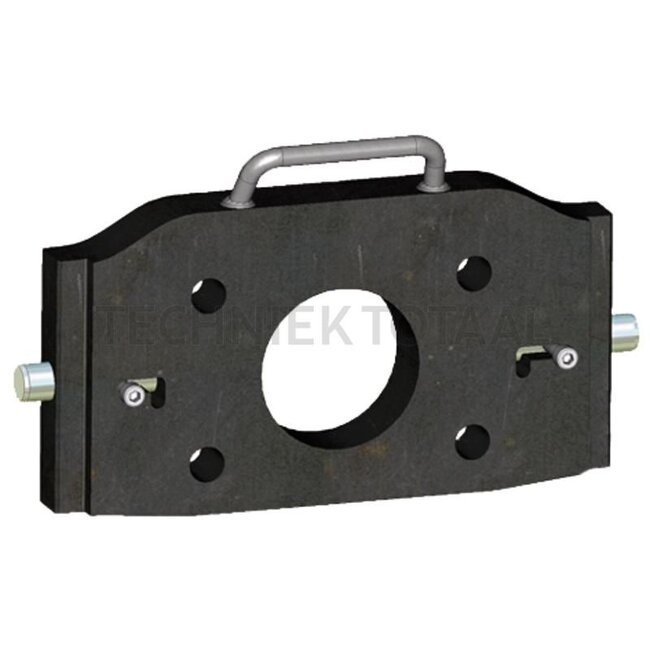

Name: Walterscheid Adapter plate rail width 390 mm, hole pattern 160 x 100 mm, M21 | 8004970
Brand: Walterscheid
SKU: 770KUP389-5
Price: 937.48 EUR

Walterscheid Adapter plate rail width 390 mm, hole pattern 160 x 100 mm, M21 | 8004970

Adaptor plate

Rail width (mm): 390

Guide width (mm): 32

Detent pin Ø (mm): 25

Load capacity (kg): 2800

D-value (kN): 89,3

Central hole (mm): 95

Hole pattern (mm): 160 x 100

Hole (mm): M21

Colour: Black

Description: The coupling plate is a height-adjustable sliding plate that can only be operated in hitch supports with locking rails. It is prepared for attaching flange couplings or other connecting devices with a flange. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: height-adjustable, forged material, suitable for a wide range of couplings that can be flange-mounted

Assembly notes: The vehicle part support distance (from the centre of the coupling plate to the centre of the coupling point) may be up to 222 mm.

Passend voor:

Valtra-Valmet: 8004970, Serie N4, N 104, N 114, Serie S4, S 274, S 294, S 324, S 354, S 374, S 394, Serie T4, T 144, T 154, T 174, T 194, T 214, T 234, T 254, Serie T5, T145, T155, T175, T175e, T195, T215, T235, T255

Steyr: 8004970, Serie 80, 8110, 8130, Serie Terrus, 6270 Terrus, 6300 Terrus

New Holland: 8004970, Serie T7, T7.165, T7.175 (4/14-), T7.190 (4/14-), T7.195, T7.210 (4/14-), T7.215, T7.230 (4/14-), T7.245 (4/14-), T7.260 (4/14-), T7.275, T7.290, T7.315, Serie T7 Autocommand, T7.175 Autocommand (4/14-), T7.190 Autocommand (4/14-), T7.210 Autocommand (4/14-), T7.225 Autocommand (4/14-), T7.230 Autocommand (4/14-), T7.245 Autocommand (4/14-), T7.260 Autocommand (4/14-), T7.270 Autocommand (4/14-), Serie T8, T8.275 Tier 4a, T8.275 Tier 4a CVT, T8.300 Tier 4a, T8.300 Tier 4a CVT, T8.320 Tier 4b CVT (4/14-), T8.320 Tier 4b PST (4/14-), T8.330 Tier 4a, T8.330 Tier 4a CVT, T8.350 Tier 4b CVT (4/14-), T8.350 Tier 4b PST (4/14-), T8.360 Tier 4a, T8.360 Tier 4a CVT, T8.380 Tier 4b CVT (4/14-), T8.380 Tier 4b PST (4/14-), T8.390 Tier 4a, T8.390 Tier 4a CVT, T8.410 Tier 4b CVT (4/14-), T8.410 Tier 4b PST (4/14-), T8.420 Tier 4a CVT, T8.420 Tier 4a CVT (2/13-), Serie T8000, T8020, T8030, T8040, T8050, Serie TG, TG210, TG215, TG230, TG245, TG255, TG285, TG305

Deutz-Fahr: 8004970, Serie 6 Agrotron, 6150 Agrotron, 6150.4 Agrotron, 6155 Agrotron, 6160 Agrotron, 6160.4 Agrotron, 6165 Agrotron, 6165.4 Agrotron, 6175 Agrotron, 6175.4 Agrotron, 6180 Agrotron, 6185 Agrotron, 6190 Agrotron, 6205 Agrotron, 6215 Agrotron, Serie 6 Agrotron TTV, 6120.4 TTV Agrotron, 6130.4 TTV Agrotron, 6140 TTV Agrotron, 6140.4 TTV Agrotron, 6150.4 TTV Agrotron, 6155 TTV Agrotron, 6155.4 TTV Agrotron, 6160 TTV Agrotron, 6160.4 TTV Agrotron, 6165 TTV Agrotron, 6165.4 TTV Agrotron, 6175 TTV Agrotron, 6175.4 TTV Agrotron, 6180 TTV Agrotron, 6185 TTV Agrotron, 6190 TTV Agrotron, 6205 TTV Agrotron, 6210 TTV Agrotron, 6230 TTV Agrotron, 6230 TTV HD Agrotron, Serie 7 Agrotron TTV, 7210 TTV Agrotron, 7230 TTV Agrotron, 7250 TTV Agrotron, Serie 9 Agrotron TTV, 9270 TTV Agrotron, 9290 TTV Agrotron, 9310 TTV Agrotron, 9340 TTV Agrotron, Serie Agrotron, Agrotron 120, Agrotron 150, Serie Agrotron K, Agrotron K 90, Agrotron K 100, Agrotron K 110, Agrotron K 120, Serie Agrotron M, Agrotron M 410, Agrotron M 420, Agrotron M 600, Agrotron M 610, Agrotron M 615, Agrotron M 620, Agrotron M 625, Agrotron M 640, Agrotron M 650, Serie Agrotron New, Agrotron New 130, Agrotron New 150.7, Agrotron New 165.7, Agrotron New 180, Serie Agrotron New Profiline, Agrotron New 180.7 Profiline, Serie Agrotron TTV Tier 3, Agrotron TTV 630

John Deere: 8004970, Serie 6D, 6100D, 6115D, 6130D, Serie 6M, 6110M, 6115M, 6120M, 6125M, 6130M, 6135M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M, Serie 6MC, 6090MC, Serie 6R, 6R 110, 6R 120, 6R 130, 6R 140, 6R 145, 6R 150, 6R 155, 6R 165, 6R 175, 6R 185, 6R 195, 6R 215, 6R 230, 6R 250, 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6135R, 6140R, 6145R, 6150R, 6155R, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6230R, 6250R, Serie 7R, 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, Serie 8R/8RT, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8400R, Serie 6000/6000SE, 6100, Serie 6010/6010SE, 6010, Serie 6020/6020SE, 6020, 6120, 6220, 6320, 6420, 6420S, 6520, 6620, 6820, 6920, 6920S, Serie 6030/6030PR, 6130, 6230, 6230 PR, 6330, 6330 PR, 6430, 6430 PR, 6530, 6530 PR, 6534 PR, 6630, 6630 PR, 6830, 6830 PR, 6930, 6930 PR, Serie 6115, 6115, Serie 6140, 6140, Serie 7020, 7720, 7820, 7920, Serie 7030/7030PR, 7230, 7430 PR, 7530 PR, 7630, 7730, 7830, 7930, Serie 7210, 7210, Serie 8010/8010T, 8110, 8210, 8310, 8410, Serie 8020/8020T, 8120, 8220, 8320, 8420, 8520, Serie 8030/8030T, 8130, 8230, 8330, 8430, 8530

Fendt: 8004970, Serie Fendt 700, Fendt 712 (Typ 724), Fendt 714 (Typ 738), Fendt 716 (Typ 739), Fendt 718 (Typ 740), Fendt 720 (Typ 741), Fendt 722 (Typ 742), Fendt 724 (Typ 743), Serie Fendt 900, Fendt 924 (Typ 941), Fendt 927 (Typ 942), Fendt 930 (Typ 943), Fendt 933 (Typ 944), Fendt 936 (Typ 945), Fendt 939 (Typ 946), Fendt 942 (Typ 961), Serie MT, Fendt 1149 MT, Fendt 1154 MT, Fendt 1159 MT, Fendt 1165 MT

Claas: 8004970, Serie Axion, Axion 800, Axion 810, Axion 830, Axion 840, Axion 850, Axion 870, Axion 920, Axion 930, Axion 940, Axion 950, Serie Xerion, Xerion 4500, Xerion 5000

Lamborghini: 8004970, Serie Spark Tier 4f, Spark 120, Spark 130, Spark 140, Spark 155, Spark 155.4, Spark 165, Spark 165.4, Spark 175, Spark 175.4, Spark 185, Spark 205, Spark 215

Massey Ferguson: 8004970, Serie 7S, 7S.155, 7S.165, 7S.180, 7S.190, 7S.210, Serie 8S, 8S.205, 8S.225, 8S.245, 8S.265, 8S.285, 8S.305, Serie 800, 873, Serie 7700/S, 7715/S, 7719/S, 7720/S, 7722/S, 7724/S, 7726/S, Serie 8700/S, 8727, 8730, 8732, 8735

Case IH: 8004970, Serie Magnum, Magnum 225 (1/06-), Magnum 250 (1/06-), Magnum 280 (1/06-), Magnum 310 (1/06-), Magnum 335, Serie Magnum Tier 4, Magnum 235 Tier 4a, Magnum 235 Tier 4a CVT, Magnum 260 Tier 4a, Magnum 260 Tier 4a CVT, Magnum 290 Tier 4a, Magnum 290 Tier 4a CVT, Magnum 315 Tier 4a, Magnum 315 Tier 4a CVT, Magnum 340 Tier 4a, Magnum 340 Tier 4a CVT/CVX, Magnum 340 Tier 4b CVT/CVX (4/14-), Serie MX, MX 180 Magnum, MX 200 Magnum, MX 210 Magnum, MX 220 Magnum, MX 230 Magnum, MX 240 Magnum, MX 255 Magnum, MX 270 Magnum, MX 285 Magnum, Serie Optum, Optum 250, Optum 270, Optum 300, Serie Puma, Puma 140 (1/07-11/09), Serie Puma CVX, Puma 150 CVX, Puma 165 CVX (11/08-), Puma 185 CVX (12/10-), Puma 200 CVX (12/10-)
