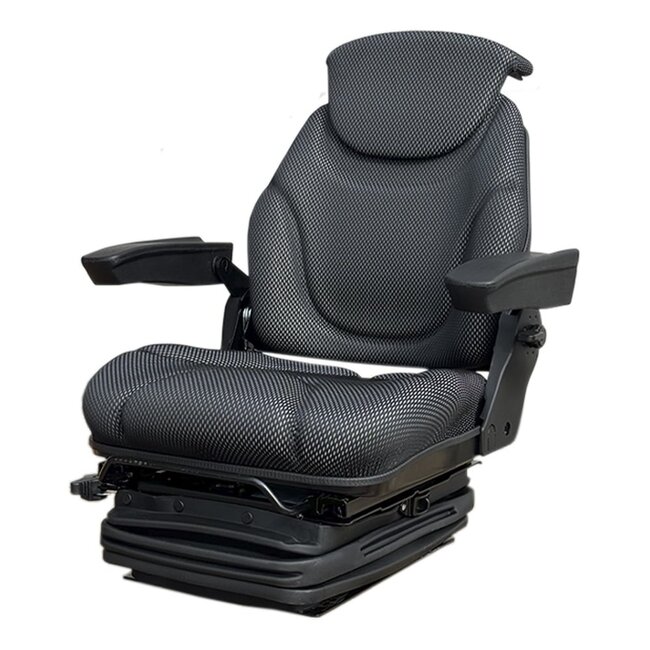

This air-suspended tractor seat is designed as a comfortable work seat with fabric upholstery and wide air suspension. The seat is equipped with an integrated 12V/24V air compressor and offers 100 mm suspension travel combined with a hydraulic shock absorber. Weight adjustment is manual from 50 to 130 kg. The seat height is continuously adjustable over 80 mm and the backrest can be adjusted 30° backward and 85° forward. In addition, the seat features horizontal damping in the longitudinal direction and mechanical lumbar support. The armrests are height-adjustable and foldable. This air-suspended comfort seat complies with applicable EU standards.

• Version: air-suspended comfort seat
• Suspension: air-suspended
• Integrated air compressor: 12V / 24V
• Upholstery type: fabric, black
• Suspension travel: 100 mm
• Suspension system: air suspension with hydraulic shock absorber
• Weight adjustment: manual, 50–130 kg
• Height adjustment: continuous, 80 mm
• Fore-and-aft adjustment (sliding base): 190 mm, lockable, 15 mm increments
• Backrest adjustment: 30° backward / 85° forward
• Horizontal suspension: longitudinal damper, 35 mm
• Lumbar support: mechanical
• Armrests: yes, height-adjustable and foldable
• Armrest length: 260 mm
• Seat width: 480 mm
• Track width: 260 mm
• Seat contact switch: optional
• Joystick console: optional
• Horizontal suspension in transverse direction: optional
• Seat belt system: optional
• Seat heating: optional
• Rotation: optional

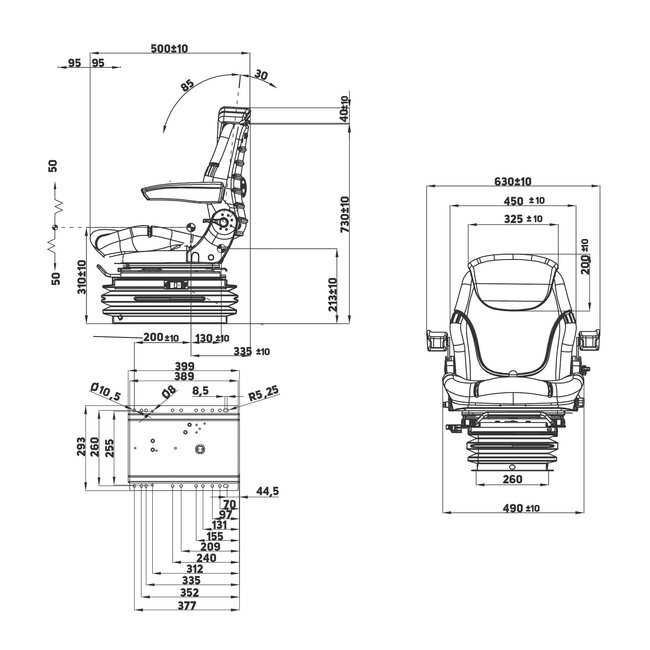

• Length: 579 mm
• Height: 685–745 mm
• Certificates: EU 1322/2014, ECE R16.06

Compatible with:

• Deutz-Fahr: Serie 07C, Serie Agrosun (120, 140), Serie Agrotron (160, 175, 200), Serie Agrotron 4.xx (4.70, 4.80), Serie Agrotron K Tier 3 (430, 610), Serie Agrotron L (720), Serie Agrotron M (410–650), Serie Agrotron MK3 (80–260), Serie Agrotron New (108–265), Serie Agrotron New Profiline (120–180.7), Serie Agrotron TTV (1130–1160), Serie Agrotron TTV Tier 3 (610–630), Serie Agrotron X (710, 720), Serie AgroXtra (3.57–6.17), Serie DX (80–250), Serie DX 3, Serie DX 4, Serie DX 6, Serie DX 7, Serie DX 8, Serie Hopfen, Serie Intrac
