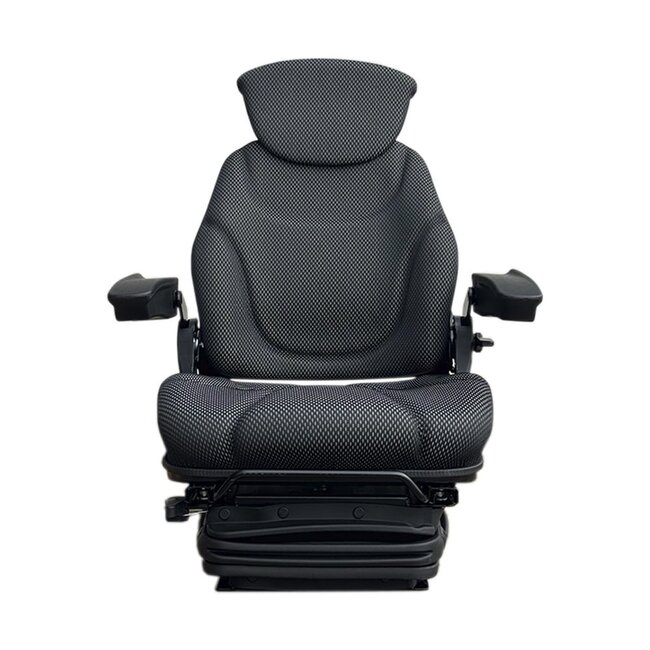

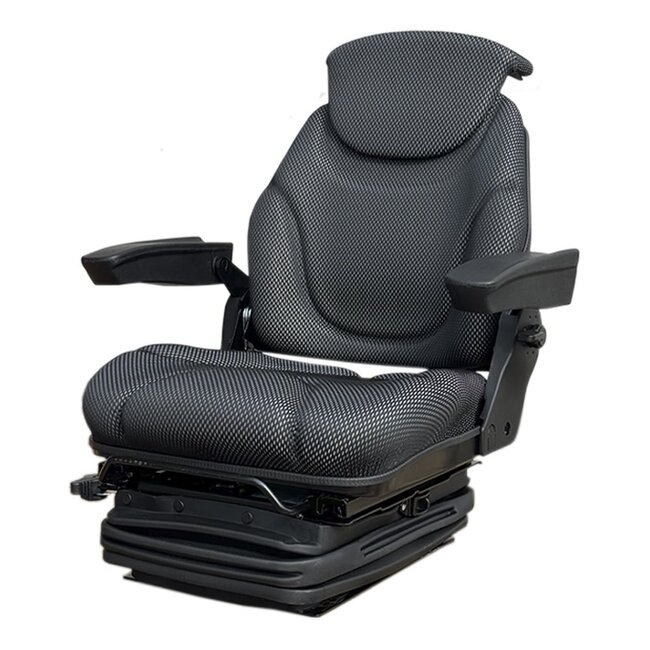

This air-suspended tractor seat is designed as a comfortable work seat with fabric upholstery and wide air suspension. The seat is equipped with an integrated 12V/24V air compressor and offers 100 mm suspension travel combined with a hydraulic shock absorber. Weight adjustment is manual from 50 to 130 kg. The seat height is continuously adjustable over 80 mm and the backrest can be adjusted 30° backward and 85° forward. In addition, the seat features horizontal damping in the longitudinal direction and mechanical lumbar support. The armrests are height-adjustable and foldable. This air-suspended comfort seat complies with applicable EU standards.

• Version: air-suspended comfort seat
• Suspension: air-suspended
• Integrated air compressor: 12V / 24V
• Upholstery type: fabric, black
• Suspension travel: 100 mm
• Suspension system: air suspension with hydraulic shock absorber
• Weight adjustment: manual, 50–130 kg
• Height adjustment: continuous, 80 mm
• Fore-and-aft adjustment (sliding base): 190 mm, lockable, 15 mm increments
• Backrest adjustment: 30° backward / 85° forward
• Horizontal suspension: longitudinal damper, 35 mm
• Lumbar support: mechanical
• Armrests: yes, height-adjustable and foldable
• Armrest length: 260 mm
• Seat width: 480 mm
• Track width: 260 mm
• Seat contact switch: optional
• Joystick console: optional
• Horizontal suspension in transverse direction: optional
• Seat belt system: optional
• Seat heating: optional
• Rotation: optional
• Length: 579 mm
• Height: 685–745 mm
• Certificates: EU 1322/2014, ECE R16.06

Compatible with:

• Fendt: Serie Farmer 300 (303–312), Serie Farmer 400 (409–412), Serie Favorit 500 (509–515), Serie Favorit 600 (600–626), Serie Favorit 700 (711–716), Serie Favorit 800 (816–824), Serie Favorit 900 (916–926), Serie Fendt 300 (309–312), Serie Fendt 400 (411–415), Serie Fendt 700 (712–716), Serie Fendt 800 (820–828), Serie Fendt 900 (916–939), Serie Geräteträger (GT 250–395), Serie Xylon (520, 522, 524)
