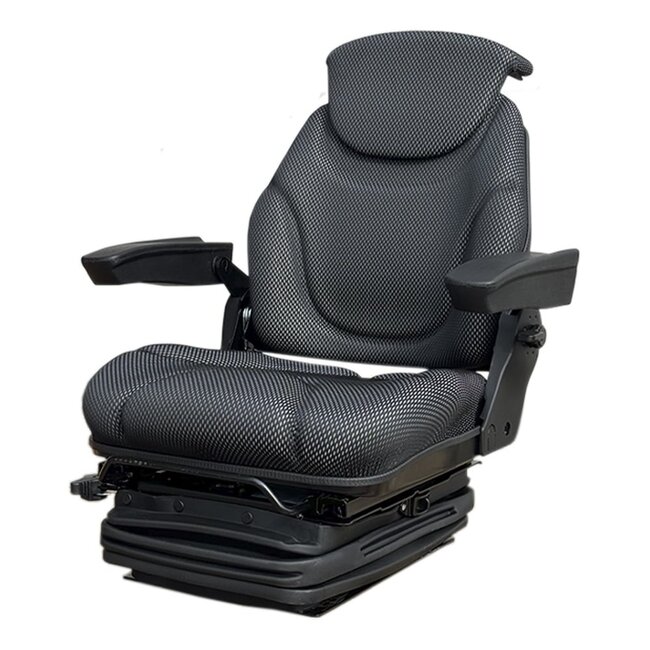

This air-suspended tractor seat is designed as a comfortable work seat with fabric upholstery and wide air suspension. The seat is equipped with an integrated 12V/24V air compressor and offers 100 mm suspension travel combined with a hydraulic shock absorber. Weight adjustment is manual from 50 to 130 kg. The seat height is continuously adjustable over 80 mm and the backrest can be adjusted 30° backward and 85° forward. In addition, the seat features horizontal damping in the longitudinal direction and mechanical lumbar support. The armrests are height-adjustable and foldable. This air-suspended comfort seat complies with applicable EU standards.

• Version: air-suspended comfort seat
• Suspension: air-suspended
• Integrated air compressor: 12V / 24V
• Upholstery type: fabric, black
• Suspension travel: 100 mm
• Suspension system: air suspension with hydraulic shock absorber
• Weight adjustment: manual, 50–130 kg
• Height adjustment: continuous, 80 mm
• Fore-and-aft adjustment (sliding base): 190 mm, lockable, 15 mm increments
• Backrest adjustment: 30° backward / 85° forward
• Horizontal suspension: longitudinal damper, 35 mm
• Lumbar support: mechanical
• Armrests: yes, height-adjustable and foldable
• Armrest length: 260 mm
• Seat width: 480 mm
• Track width: 260 mm
• Seat contact switch: optional
• Joystick console: optional
• Horizontal suspension in transverse direction: optional
• Seat belt system: optional
• Seat heating: optional
• Rotation: optional
• Length: 579 mm
• Height: 685–745 mm
• Certificates: EU 1322/2014, ECE R16.06

Compatible with:

• Ford: Serie 10 (7710, 7810), Serie 35 (5635), Serie 70 (8970)
