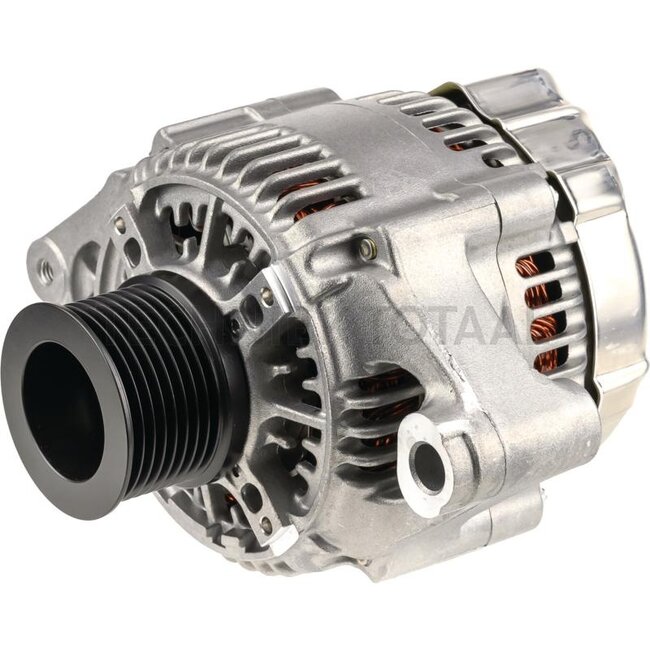

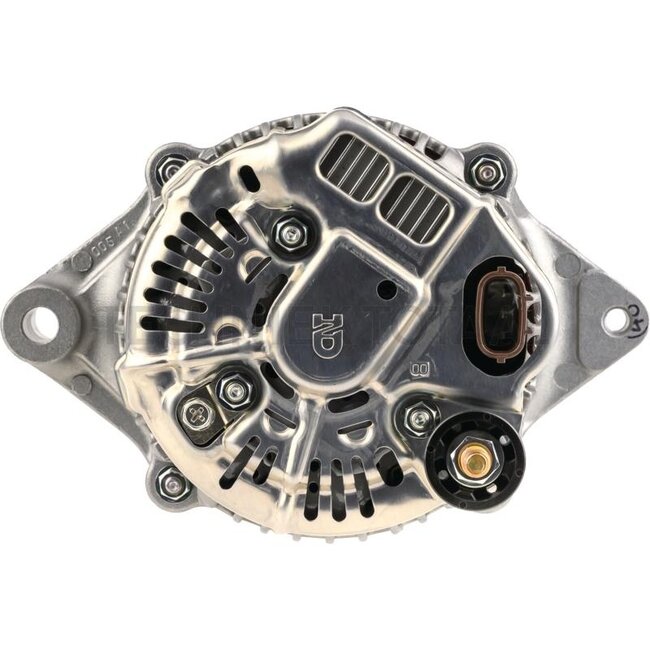

Denso Alternator 14 V / 90 A

Replaces: DAN2013

Technical data:

• Charging current (A): 90
• Installation angle (°): -
• Flange size (mm): 51,0
• Pulley Ø (mm): 55.0
• Mounting hole Ø / R (mm): 10,2 / -
• Mounting L / d / R (mm): 51,0 / 10,2 / -
• Additional information: Connections: B+ (M8), PL27
• Form: B
• Belt width (mm) / type: PV x 8
• Nominal values (V / A): 14 / 90
• Pulley spacing (mm): 24,0
• Nominal voltage (V): 14
• Direction of rotation: -

Suitable for:

New Holland: B90, B100, B110, B115, LB90.B (1/05-), LB90.B (4/03-), LB95.B (1/05-), LB95.B (4/03-), LB110.B (1/05-), LB110.B (4/03-), LB115.B
