Installation angle (°): l 60 | Additional information: Dust-tight | Mounting L / d / R (mm): 56,0 / 8,2 / 86,0 | Form: B | Mounting hole Ø / R (mm): 8,2 / 86,0 | Flange size (mm): 56,0 | Pulley Ø (mm): 56.2 | Charging current (A): 100 | Nominal voltage (V Read more.

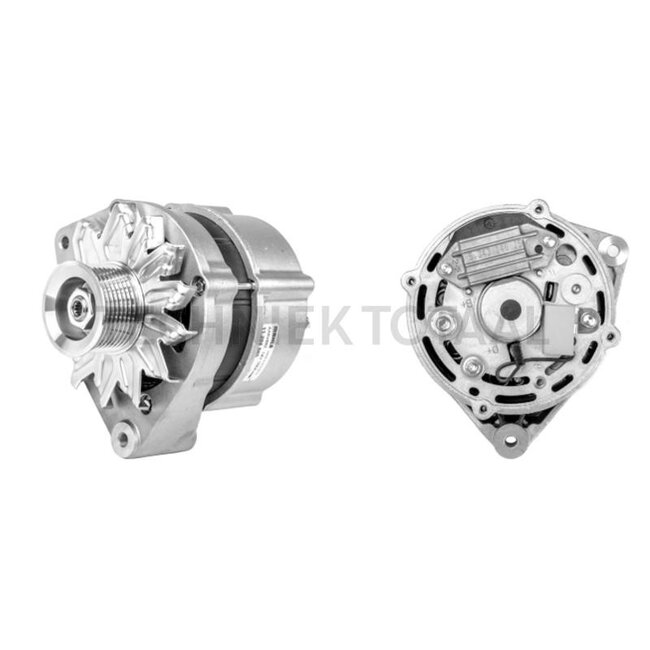

MAHLE Alternator 14 V / 100 A
Replaces: MG 180
Technical data:
Suitable for:
JCB: 67C-1 ( Kohler KDI 1903 T4 (1912903-3078240 )), 86C-1 (Kohler 2504 T4 ( 2247516-2797813 )), 100C-2 ( Kohler 2504 TCR 55Kw T4 (2736831-3261384 )), 85Z-1 ( Kohler 2504 TCR ( 2248518-2850514 )), 90Z-1 ( Kohler 2504 TCR ( 19110901-2769159 ))
