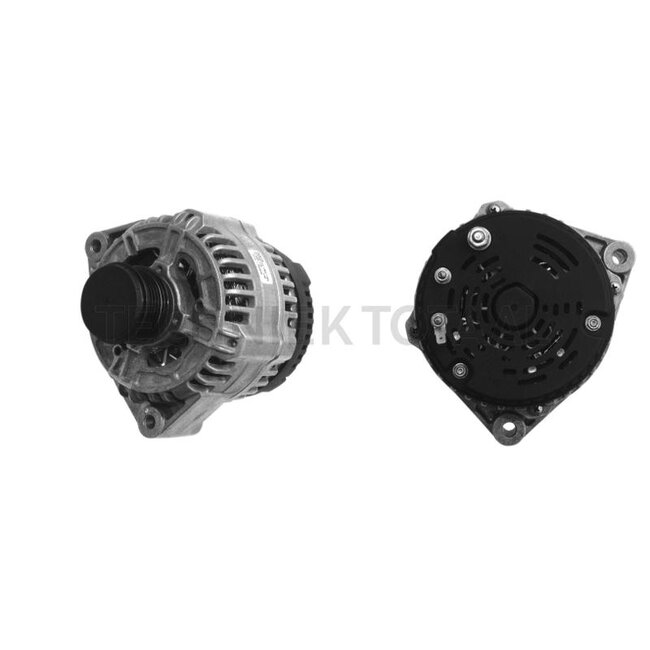

MAHLE Alternator 14 V / 120 A
Compact design, internal fan
Replaces: MG 574
Technical data:
- Direction of rotation: ↻
- Mounting L / d / R (mm): 56,0 / 10,2 / 90,0
- Charging current (A): 120
- Pulley Ø (mm): 56.0
- Nominal values (V / A): 14 / 120
- Belt width (mm) / type: PV x 6
- Form: B
- Additional information: Compact generator, dust-tight, with freewheel pulley
- Pulley spacing (mm): 36
- Installation angle (°): l 60
- Flange size (mm): 56,0
- Mounting hole Ø / R (mm): 10,2 / 90,0
- Nominal voltage (V): 14
