GRANIT Alternator 14 V / 40 A, flange 81,5 mm Perkins 403D-15, 404D-22 | F032113562, 113562, 185046320

€270,31 Incl. 21% VAT
€223,40 Excl. VAT
In stock

Installation angle (°): 0 | Charging current (A): 40 | Additional information: Connections: B+ (M6), with W connection (6.3), internal regulator | Nominal voltage (V): 14 | Pulley Ø (mm): 72.5 | Flange size (mm): 81,5 | Direction of rotation: ↻ | Belt ten Read more.

Found in category:
Tractor & vehicle› Electrics› Alternators

Larger quantity required?



Product description

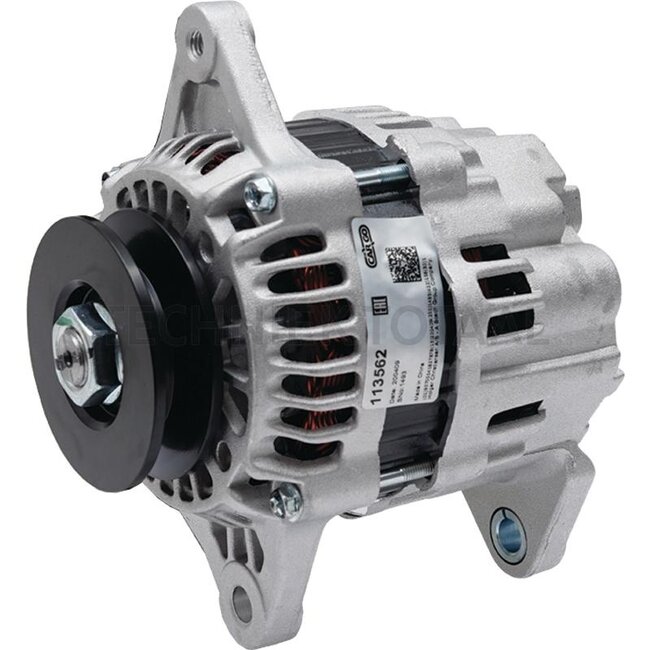

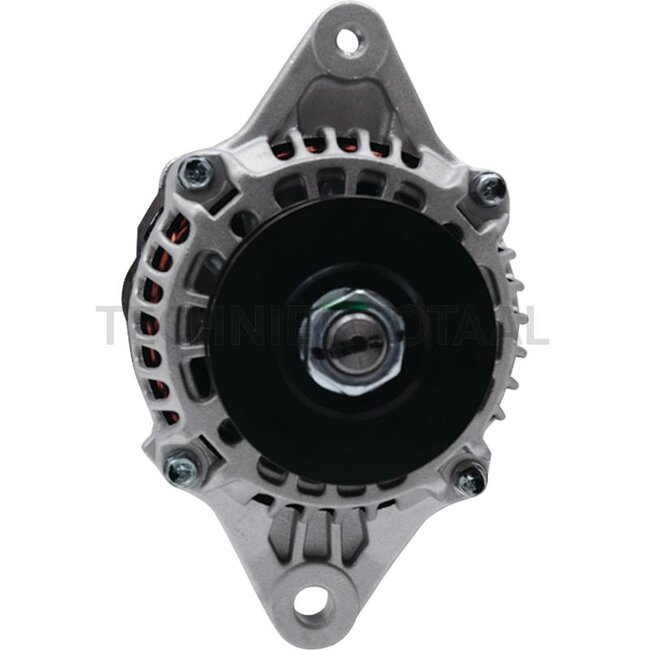

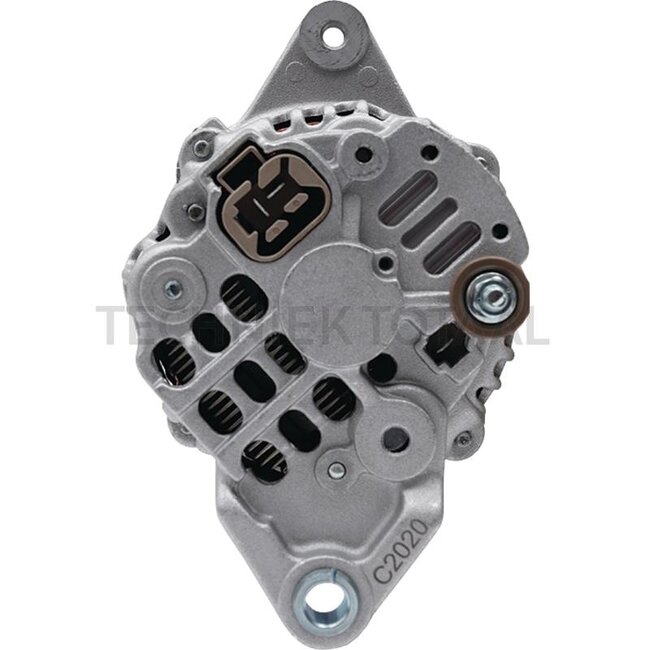

GRANIT Alternator 14 V / 40 A

Replaces: F032113562, 113562

Technical data:

  • Installation angle (°): 0
  • Charging current (A): 40
  • Additional information: Connections: B+ (M6), with W connection (6.3), internal regulator
  • Nominal voltage (V): 14
  • Pulley Ø (mm): 72.5
  • Flange size (mm): 81,5
  • Direction of rotation: ↻
  • Belt tension hole Ø / R (mm): M8 / 78,0
  • Pulley spacing (mm): 42,0
  • Form: A
  • Mounting hole Ø / R (mm): 10,5 / 78,0
  • Nominal values (V / A): 14 / 40
  • Belt width (mm) / type: -
  • Mounting L / d / R (mm): 81,5 / 10,5 / 78,0

Suitable for:

Perkins: GK 403D-15, GN 404D-22

Further information

Article number
378C9900100
SKU
378C9900100
