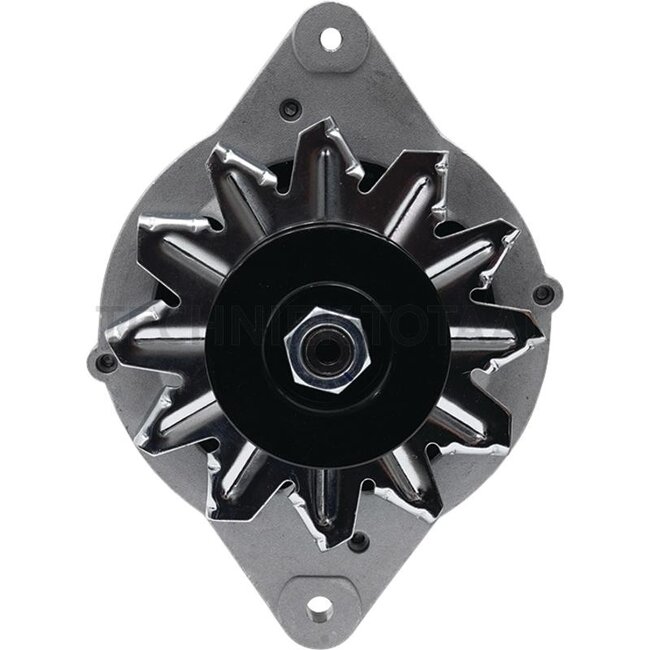

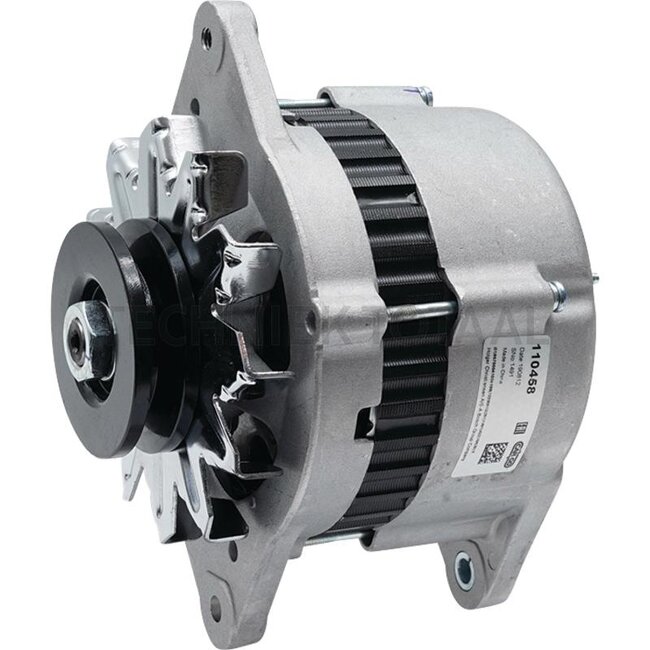

GRANIT Alternator 14 V / 60 A
Replaces: 110458, F032110458
Technical data:
- Form: A
- Belt width (mm) / type: -
- Belt tension hole Ø / R (mm): M8 / 92,0
- Mounting L / d / R (mm): 80,0 / 8,5 / 92,0
- Charging current (A): 60
- Pulley spacing (mm): 43,0
- Installation angle (°): -
- Nominal voltage (V): 14
- Additional information: Connections: B+ (M5), with W connection (6.3), internal regulator
- Flange size (mm): 80,0
- Pulley Ø (mm): 74.0
- Nominal values (V / A): 14 / 60
- Direction of rotation: ↻
- Mounting hole Ø / R (mm): 8,5 / 92,0
