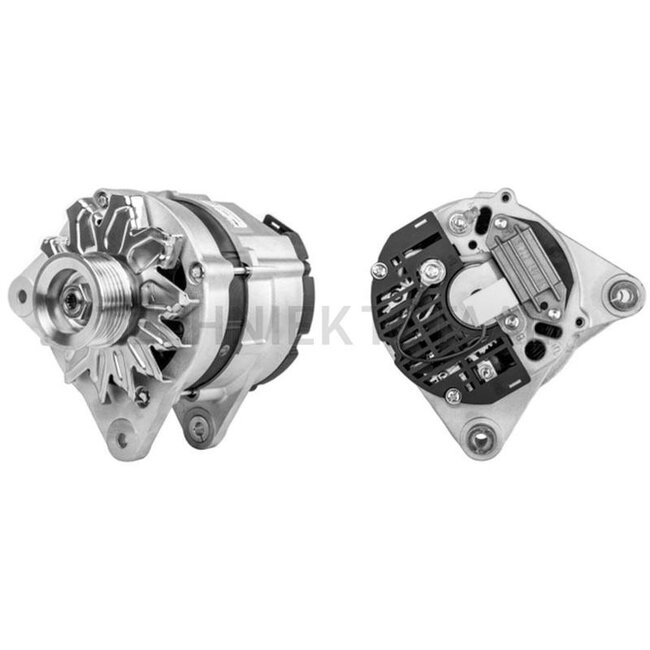

MAHLE Alternator 14 V / 90 A
Replaces: MG 625
Technical data:
- Belt width (mm) / type: PV x 6
- Nominal voltage (V): 14
- Mounting hole Ø / R (mm): 8,5 / 90,0
- Pulley Ø (mm): 56.0
- Charging current (A): 90
- Flange size (mm): 60,0
- Nominal values (V / A): 14 / 90
- Pulley spacing (mm): 39,5
- Direction of rotation: ↻
- Installation angle (°): l 90
- Additional information: Dust-tight with W connection
- Mounting L / d / R (mm): 60,0 / 8,5 / 90,0
- Form: A
