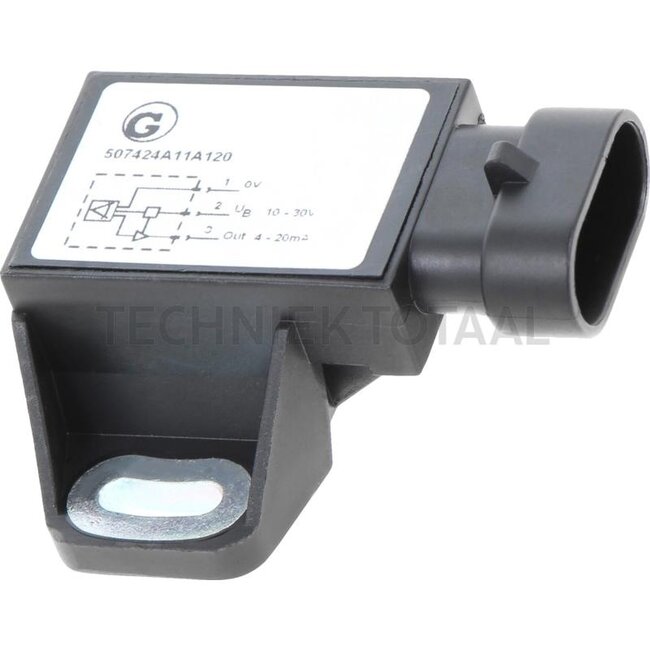

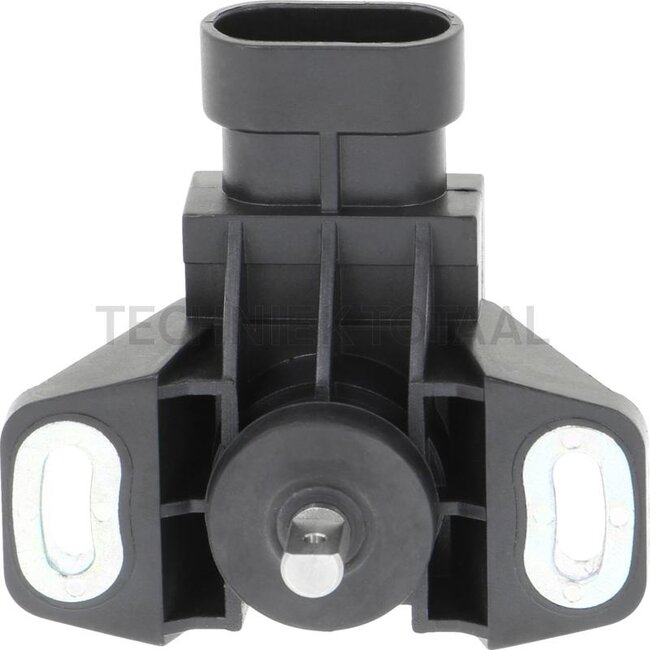

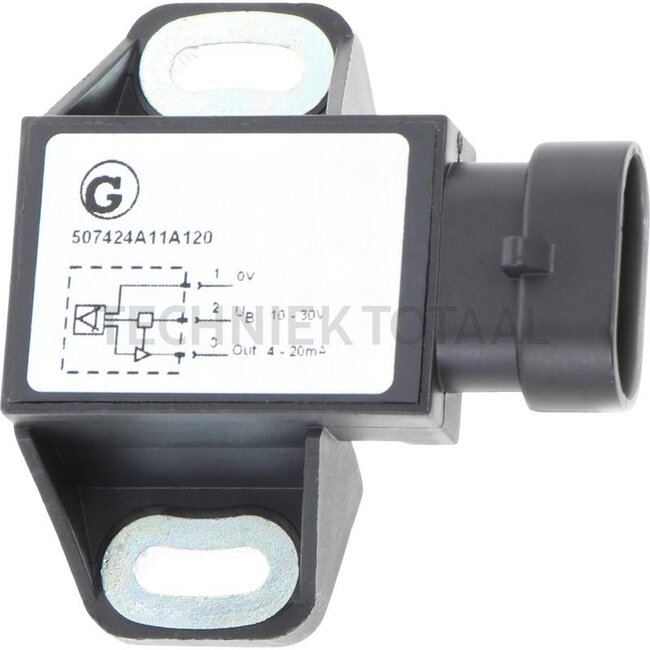

Angle sensor 120°, 10 - 30 V DC, 4 - 20 mA, IP67, ball bearing

Name: Angle sensor 120°, 10 - 30 V DC, 4 - 20 mA, IP67, ball bearing
SKU: 507424A11A120
Price: 207.70 EUR

€228,16

€207,70 Incl. 21% VAT

€171,65 Excl. VAT

In stock

Version: Angle measuring range: 120° Resolution: 0.1° Operating voltage: 10 V DC to 30 V DC Output signal: 4 mA to 20 mA Power consumption: 12 V -> 18 mA Load resistance: 10 V < 250 Ω; 30 V < 1250 Ω Central position: 12 mA Reverse polarity protection: yes Read more.

Found in category:

Tractor & vehicle› Electrics› Sensors

60.000+ technical products
Worldwide shipping*
30-day return policy
Customer rating 9.3/10

Larger quantity required?

Any questions about this product?

Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

GRANIT Angle sensor

Angle measuring range: 120°

Technical data:

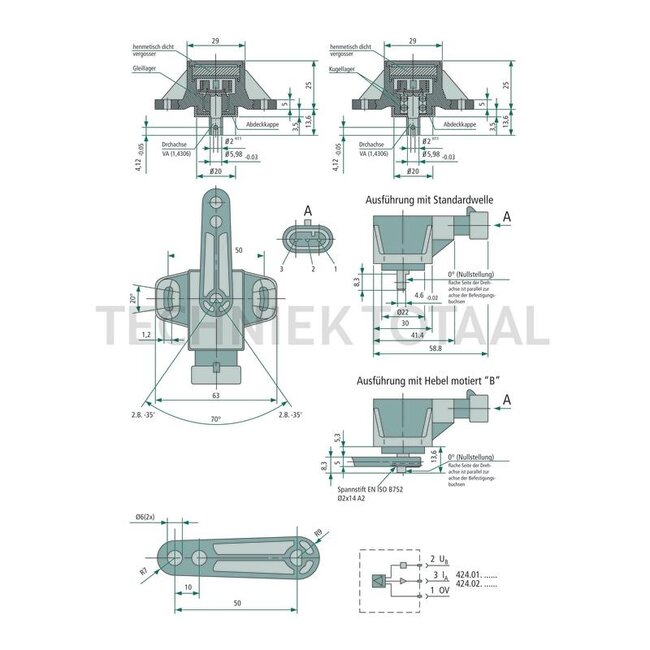

Version: Angle measuring range: 120° Resolution: 0.1° Operating voltage: 10 V DC to 30 V DC Output signal: 4 mA to 20 mA Power consumption: 12 V -> 18 mA Load resistance: 10 V < 250 Ω; 30 V < 1250 Ω Central position: 12 mA Reverse polarity protection: yes Output signal delay: 3 ms Temperature range: -40°C to +85°C Protection class: IP67 Control lever: no Shaft: standard shaft Bearing: ball bearing Connection: AMP Superseal, 3-pin
