Product description

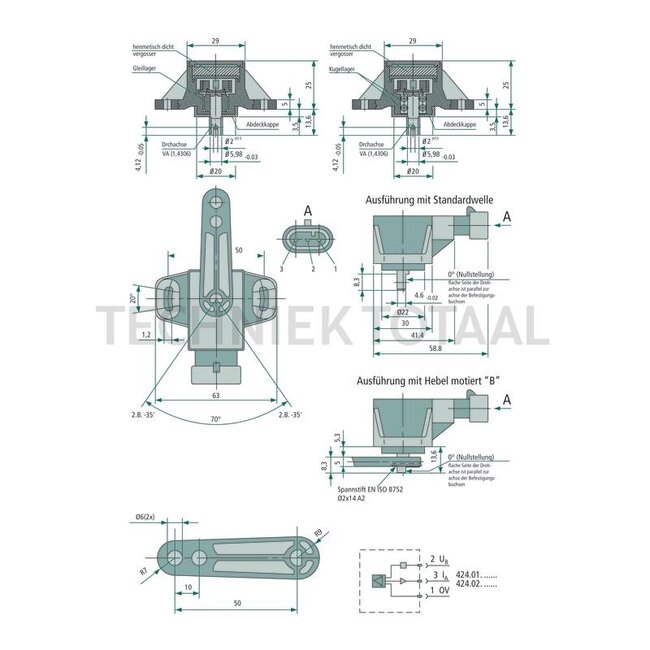

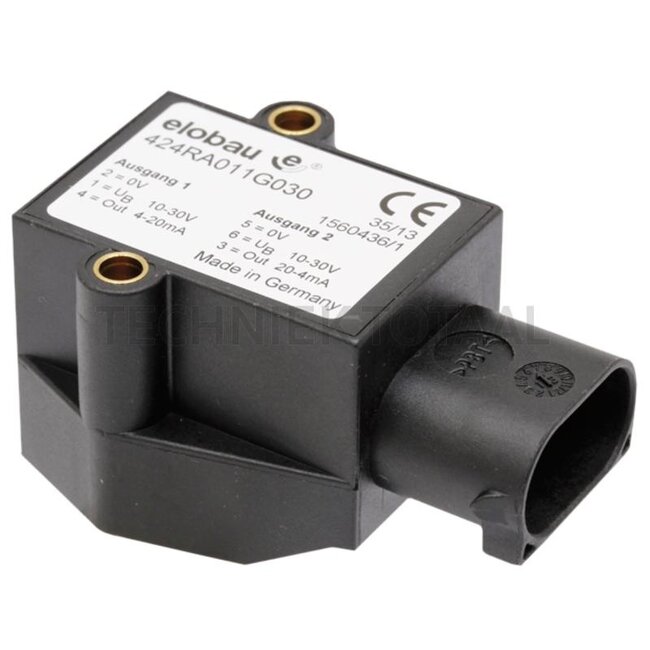

GRANIT Angle sensor
Angle measuring range: 30°
Replaces: 424RA011G030
Technical data:
Version: Angle measuring range: 30° Resolution: 0.1° Operating voltage: 10 V DC to 30 V DC Output signal: opposite Output signal 1: 4 mA to 20 mA Output signal 2: 4 mA to 20 mA Power consumption: 12 V -> 18 mA Load resistance: 10 V < 250 Ω; 30 V < 1250 Ω Central position: 12 mA Reverse polarity protection: yes Output signal delay: 3 ms Temperature range: -40°C to +85°C Protection class: IP67 Control lever: no Bearing: plain bearing Connection: AMP connector (Micro Quadlock system)
