GRANIT Angle sensor 70°, 4,5 - 5,5 V DC, 0,5 - 4,5 V Deutz-Fahr 6155 - 6205 | 424A16A070, 04438667
€191,92
€174,70 Incl. 21% VAT
€144,38 Excl. VAT
In stock
Version: Angle measuring range: 70° Resolution: 0.1° Operating voltage: 4.5 V DC to 5.5 V DC Output signal: 0.5 V to 4.5 V ratiometric Power consumption: 5 V -> 8 mA Load resistance: > 20 kΩ Central position: typically 2.5 V Reverse polarity protection: y Read more.
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!
Product description

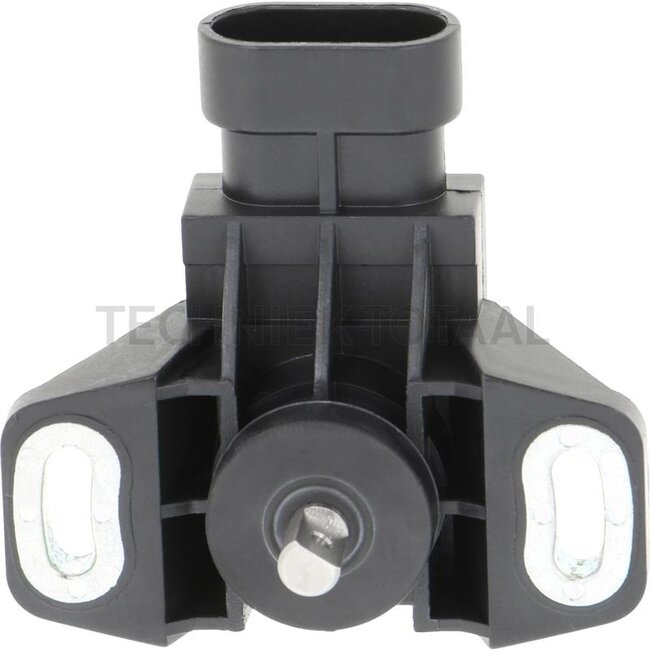

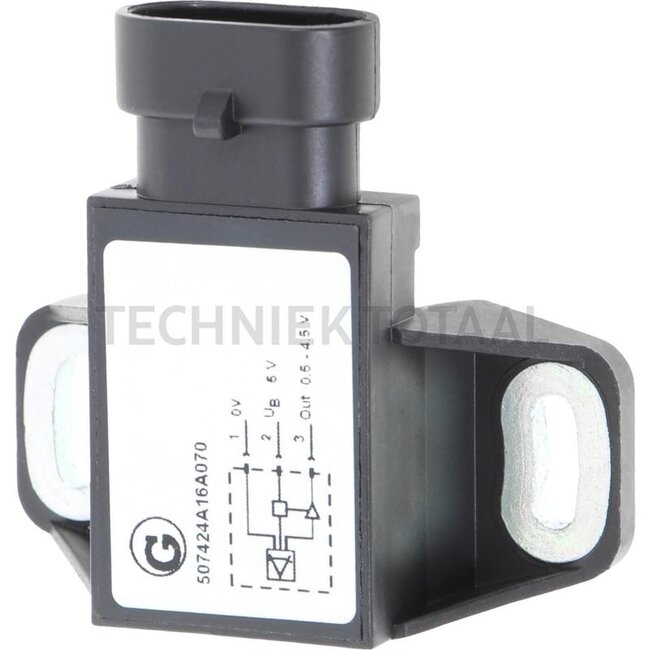

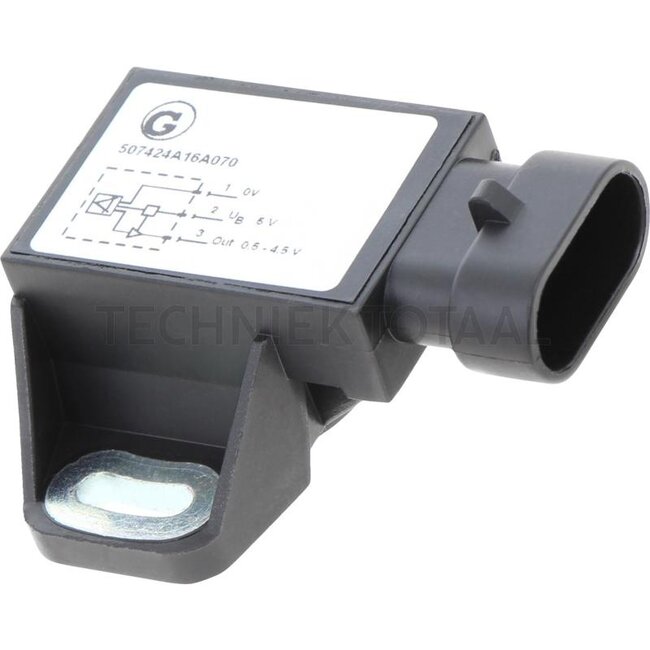

GRANIT Angle sensor
Angle measuring range: 70°
Replaces: 424A16A070

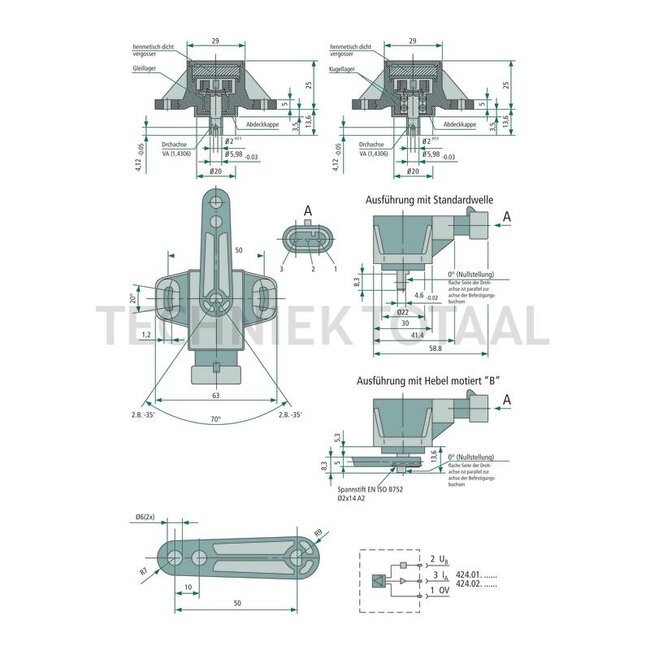

Technical data:
Version: Angle measuring range: 70° Resolution: 0.1° Operating voltage: 4.5 V DC to 5.5 V DC Output signal: 0.5 V to 4.5 V ratiometric Power consumption: 5 V -> 8 mA Load resistance: > 20 kΩ Central position: typically 2.5 V Reverse polarity protection: yes Output signal delay: 3 ms Temperature range: -40°C to +85°C Protection class: IP67 Control lever: no Shaft: standard shaft Bearing: ball bearing Connection: AMP Superseal, 3-pin
Suitable for:
Deutz-Fahr: 6155 G Agrotron, 6175 G Agrotron, 6185 G Agrotron, 6205 G Agrotron
