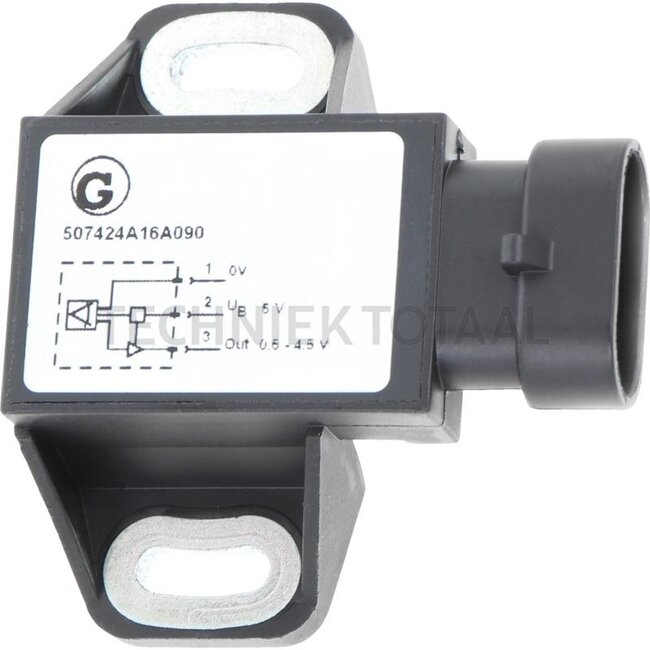

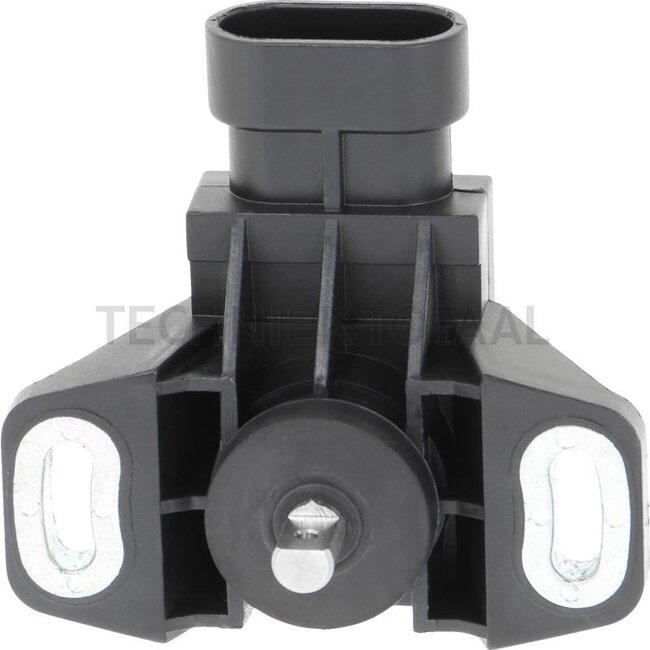

Angle sensor
Angle measuring range: 90°

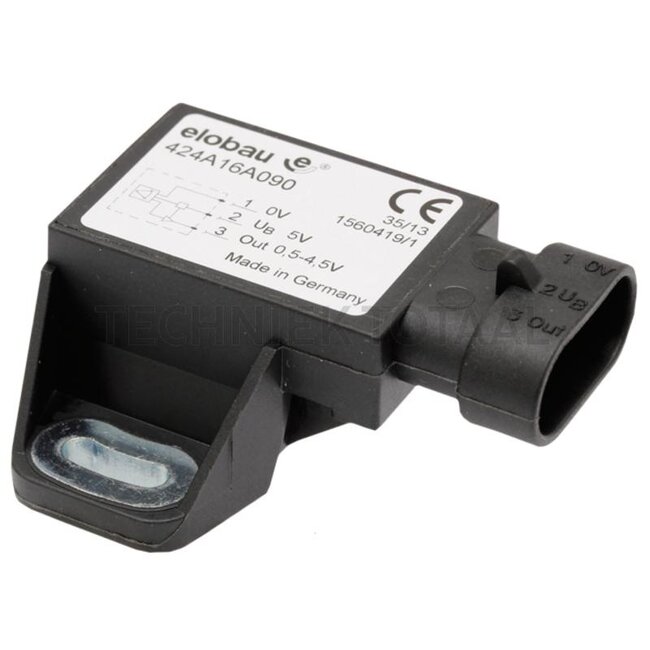

Replaces: 424A16A090
Technical data:
- Version: Angle measuring range: 90° Resolution: 0.1° Operating voltage: 4.5 V DC to 5.5 V DC Output signal: 0.5 V to 4.5 V ratiometric Power consumption: 5 V -> 8 mA Load resistance: > 20 kΩ Central position: typically 2.5 V Reverse polarity protection: yes Output signal delay: 3 ms Temperature range: -40°C to +85°C Protection class: IP67 Control lever: no Shaft: standard shaft Bearing: ball bearing Connection: AMP Superseal, 3-pin
Suitable for:
Fendt: Fendt 714 (Typ 714), Fendt 716 (Typ 716), Fendt 815 (Typ 715), Fendt 817 (Typ 717), Fendt 818 (Typ 718), Fendt 820 (Typ 731)
Specifications Angle sensor 90°
| Article number | 507424A16A090 |
|---|
| EAN | 4059139528721 |
|---|
| Weight | 74 g |
|---|
