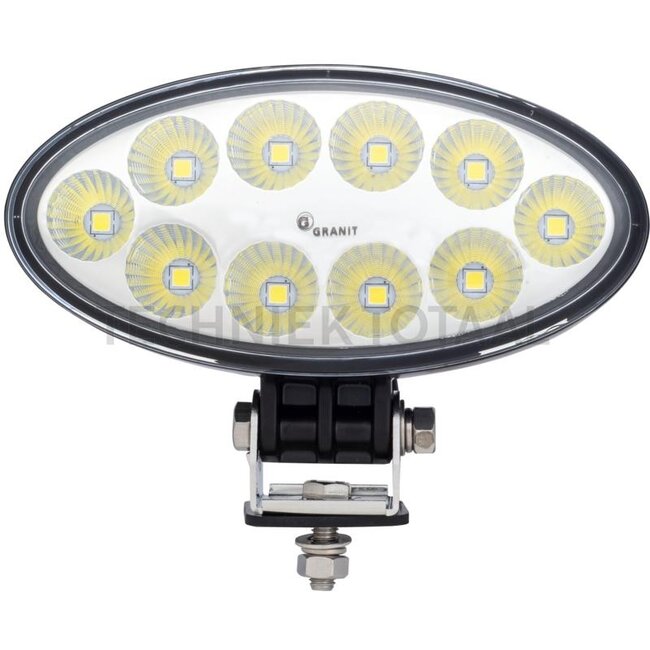

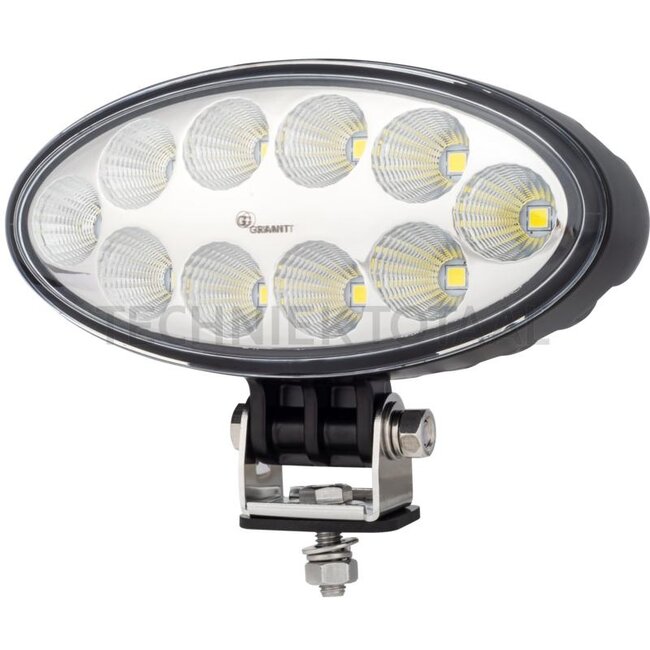

GRANIT Arbeitsscheinwerfer LED

Technical data:

• Light colour (K): 5.700 - 6.500
• Current (A): 2,08A@12V; 1,04A@24V

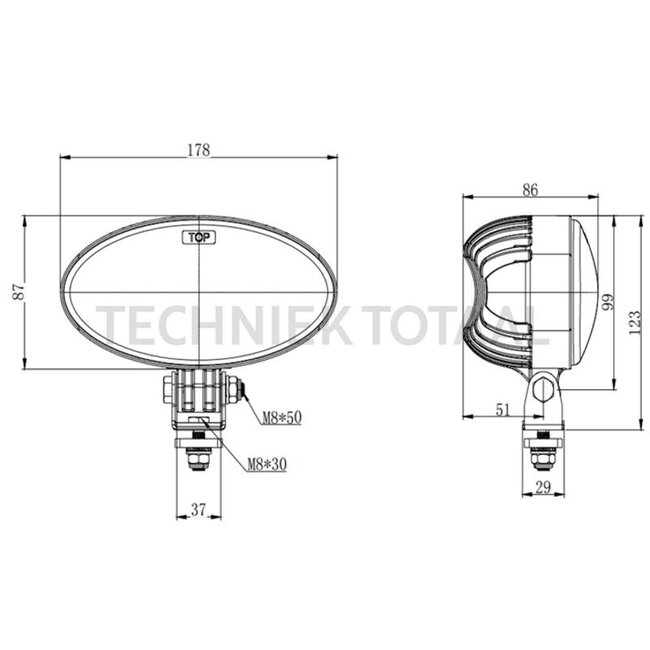

• Dimensions W x H x D (mm): 178 x 87 x 86
• Voltage range (V): 10 - 30
• EMC: CISPR25 Class 5
• Protection class: IR67, IP6K9K
• Fixing: M8x30
• Mounting type: Schraubbefestigung
• Bulb: LED
• Theoretical luminous flux (lm): 4050
• Operating temperature (°C): -40 +50°C
• Effective luminous flux (lm): 3480
• Nominal voltage (V): 12 / 24
• Material: Polycarbonat
• Connection: Built-in Deutsch DT-2 (2-pin)
• No. of LEDs: 10
• Light function: Flutlicht
• Width (mm): 178
• Depth (mm): 86
• Power (watts): 25
• Mounting size (mm): 123
• Height (mm): 87
• Bulbs included: ja
• Test mark: UKCA, CE, RoHS, ECE R10
• Housing material: Aluminium
• Form: oval

Suitable for:

John Deere: 5085E, 5100R, 6100M, 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6135R, 6140R, 6145R, 6150R, 6155R, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6230R, 6250R, 7210R, 7230R, 7250R, 7270R, 7290R, 7310R, 8295R, 8320R, 8320RT, 8370R, 8370RT, 9370R, 9420R, 9470R, 9470RT, 9470RX, 9520R, 9520RT, 9520RX, 9570R, 9570RT, 9570RX, 9620R, 9620RX, 7720, 7820, 7920, 7630, 7730, 7830, 7930, 8120, 8120T, 8220, 8220T, 8320, 8320T, 8420, 8420T, 8520, 8520T, 8130, 8230, 8230T, 8330, 8330T, 8430, 8430T, 8530, 9120, 9220, 9320, 9320T, 9420, 9420T, 9520, 9520T, 9620, 9620T, 9230, 9330, 9430, 9430T, 9530, 9530T, 9630, 9630T
