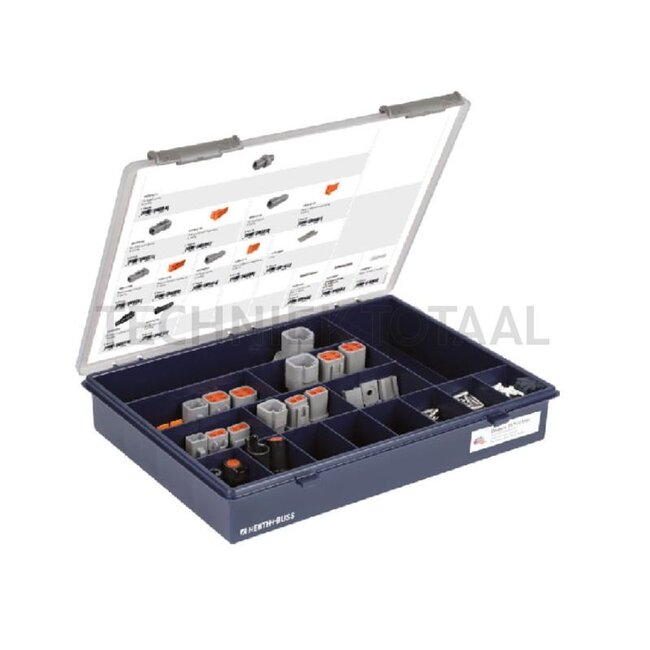

Herth & Buss Assortment, plug housing
Deutsch DTP, Deutsch DTHD
Technical data:
- Included in delivery: 1x 50391214 3x 50391208 3x 50391212 3x 50391209 3x 50391213 3x 50391206 3x 50391210 3x 50391207 3x 50391211 3x 50391025 2x 50391215 2x 50391216 20x 50253982 20x 50253983 10x 50282067
- Protection class: IP 68
- Temperature range (°C): -55 to +125
- Additional information: This assortment includes the 2- and 4-pin socket and pin housings of the DTP series, and the 1-pin housings of the DTHD series. These series build on the strengths of the DT and DTM series, but are suitable for applications with higher currents. Contacts with a pin diameter of 2.5 mm are used, which are designed for a maximum current of 25 amps (with a cable cross section of 3 mm²). The range also includes a fixing clip to secure the plug connections. The refill packs fit into the respective compartment in the assortment.
