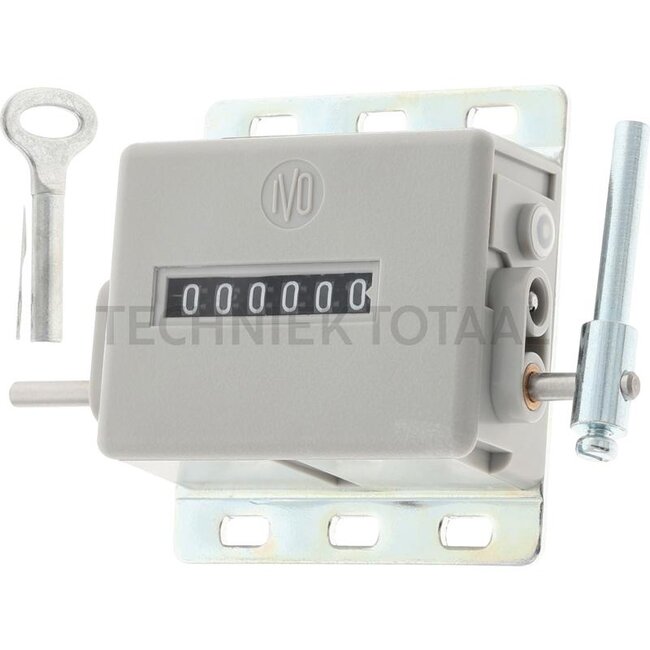

GRANIT Bale counter

Mechanical stroke counter Zero setting with key left or right Drive shaft on both sides Stroke direction left

Technical data:

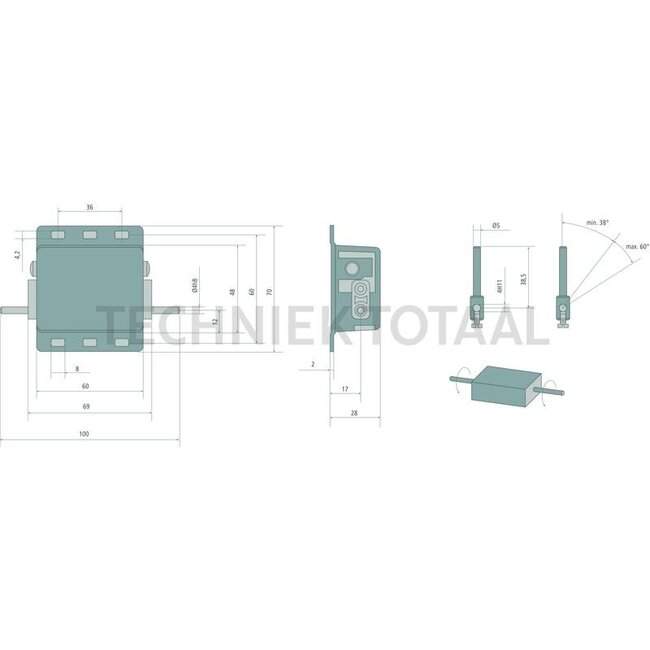

• • Function: stroke counter • Display: white digits on black • Number of digits: 6-digit • Digit height: 4.5 mm • Zero setting: Zero setting using removable socket wrench. Place the socket wrench on the left or right side of the reset shaft and reset by turning the socket wrench. • Counting method: adding in a specified stroke direction, 1 stroke = 1 number • Drive shaft: on both sides, ø4 mm • Stroke speed: >38° to <60° • Stroke lever: can be positioned anywhere on the shaft. Stroke lever automatically returns to home position. • Stroke frequency: ≤500 strokes/min. • Measuring range: 999 999 • Ambient temperature: 0 - 60°C • Housing type: surface-mounted housing with mounting plate • Housing colour: grey • Dimensions W x H x L: 69 x 48 x 28 mm • Base plate dimensions: 60 x 70 mm • Mounting type: base plate with 6 slotted holes • Material: Housing: Hostaform POM, grey Base plate: galvanised steel
