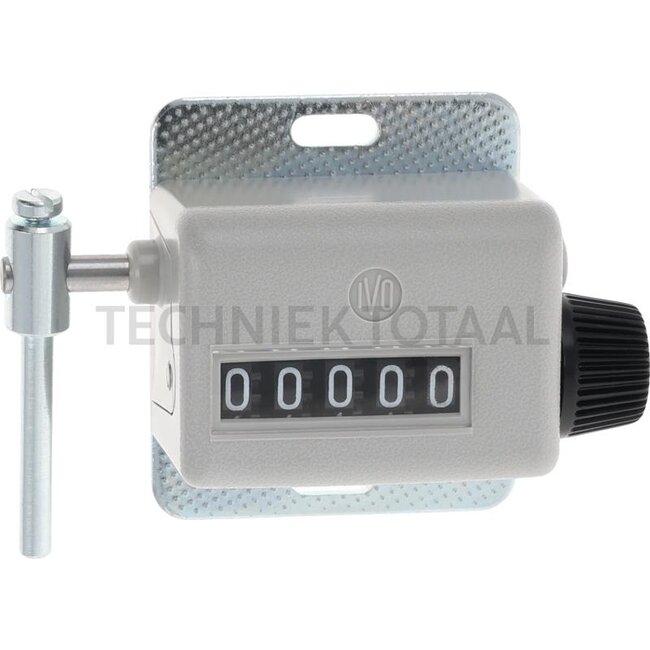

GRANIT Bale counter
Mechanical stroke counter Zero setting with knurled knob on the right Drive shaft on the left Stroke direction right
Technical data:

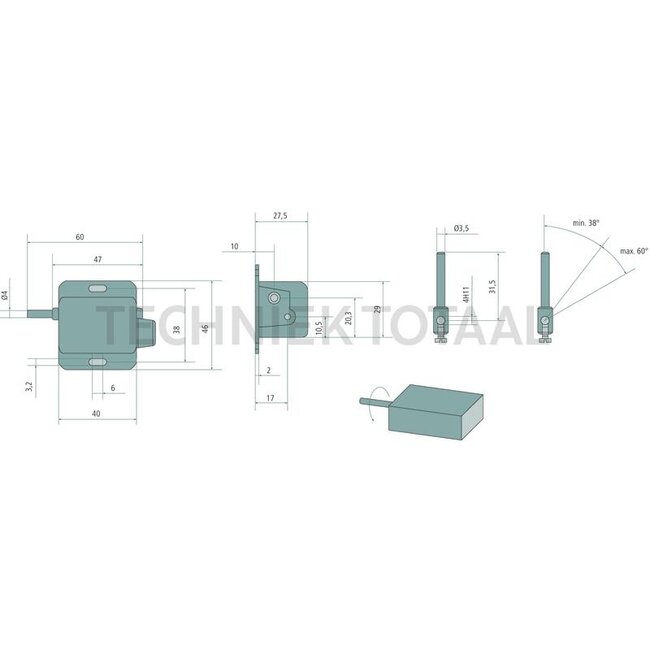

- • Function: stroke counter • Display: white digits on black • Number of digits: 5-digit • Digit height: 4.5 mm • Zero setting: zero setting with knurled knob on the right • Counting method: 1 stroke = 1 number added • Drive shaft: protruding on one side to the left, Ø 4.0 mm • Stroke movement: >38° to <60° • Stroke direction: Il, towards the viewer • Stroke lever: rigid, 31.5 mm long • Stroke frequency: ≤500 strokes/min. • Measuring range: 99 999 • Ambient temperature: 0 - 60°C • Housing type: surface-mounted housing with mounting plate • Housing colour: grey • Dimensions W x H x L: 40 x 29 x 27.5 mm • Base plate dimensions: 40 x 46 mm • Mounting type: base plate with 2 slotted holes • Material: Housing: Hostaform POM, grey Base plate: galvanised steel
