Name: GRAMMER Tractor seat Compacto Basic W MSG83/721 mechanical suspension, fabric | 1288537
Brand: GRAMMER
SKU: 2401288537
Price: 926.78 EUR

GRAMMER Tractor seat Compacto Basic W MSG83/721 mechanical suspension, fabric | 1288537

Basic W MSG83/721

Suspension: Mechanical

Upholstery type: Fabric

Seat contact switch: Optional

Track gauge (mm): 225

Seat width (mm): 480

Fore/aft isolator: Optional

Restraint system: Optional

Seat heater: Optional

Length (mm): 571

Height (mm): 698

Seat type: MSG83/721

Notes: GRAMMER offers compact, mechanical suspension combined with various upper seat parts for a wide range of applications:
● Small and narrow tractors
● Construction machinery
● Forklifts and industrial vehicles
The advantages of the COMPACTO Basic W:
Weight adjustment:
the driver's weight can be individually adjusted by turning the crank.
Compact suspension:
reduces shocks and vibrations that would be harmful to the user's health.
Height adjustment: for precise and individual height adjustment.

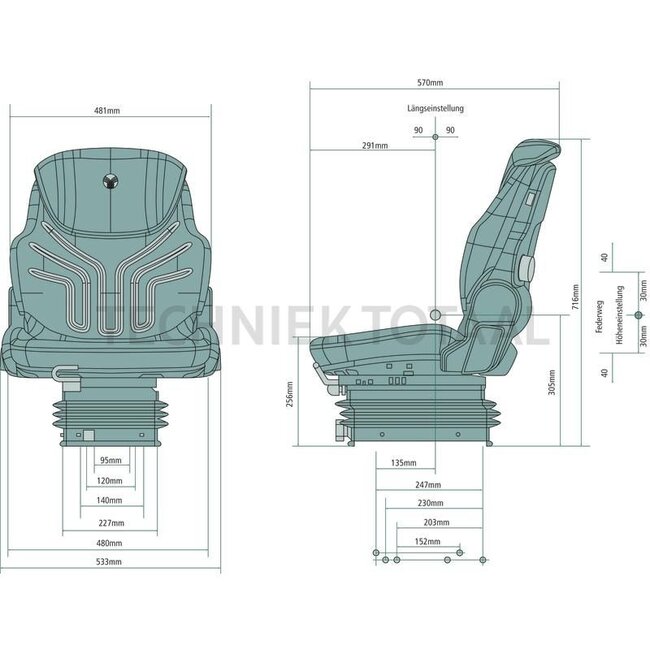

Narrow external dimensions:
F = Suspension travel
H = Height adjustment
L = Longitudinal adjustment

Technical data: • Comfort seat with mechanical scissors-type suspension
• Suspension travel 80 mm
• Height adjustment 60 mm, 3-stage (mechanical)
• Weight adjustment, adjustment range 50 - 130 kg
• Longitudinal adjustment 180 mm
• Mechanical lumbar support
• Backrest tilt adjustment
• Seat cushion width 480 mm
• Without back extension and armrests

Version: The Compacto Basic W has mechanical suspension, but does not sacrifice individually adjustable comfort.
Three different seat heights can be set using a smooth-running knob. The weight is adjusted while seated using a knob at the front, and adjusted to the selected seat height on an easy-to-read viewing window. This ensures that sufficient suspension travel is always available.

Gauge: Up to 225

Passend voor:

Landini: 1288537, Serie Atlas, Atlas 70, Atlas 80, Atlas 90, Serie Globus, Globus 55, Globus 65, Globus 75, Serie Vision, Vision 80, Vision 90, Vision 100

John Deere: 1288537, Serie 40, 1640, 1840, 2040, 2140, Serie 50, 1350, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, Serie 5000, 5300, Serie 5020, 5320, 5520, Serie 5020/5020N, 5220, 5620, 5720, 5820

Lamborghini: 1288537, Serie Formula, Formula 105, Serie Grand Prix, Grand Prix 774-80, Grand Prix 874-90, Serie Plus, Plus 660F, Plus 775F, Plus 880F, Plus 990F, Serie Runner, Runner 350

Iseki: 1288537, Serie TE, TE 3210, TE 4370, Serie TX, TX 1300, TX 2140, TX 2160

Case IH: 1288537, Serie JX, JX 55, JX 60 Tier 3 (12/08-12/13), JX 65, JX 70, JX 80, JX 85, JX 90, JX 95 Tier 3 (1/07-12/14), Serie JXU, JX 70U, JX 80U, JX 90U, JX 100U, JX 1070U, JX 1080U, JX 1090U, JX 1100U, JXU 75, JXU 85, JXU 95, JXU 105, JXU 115

Deutz-Fahr: 1288537, Serie Agrofarm, Agrofarm 80, Agrofarm 85, Agrofarm 100, Serie Agrofarm Tier 3, Agrofarm 410, Agrofarm 420, Agrofarm 430, Serie Agroplus, Agroplus 60, Agroplus 70, Agroplus 75, Agroplus 80, Agroplus 85, Agroplus 95, Agroplus 100

Fendt: 1288537, Serie Favorit 500, Favorit 510 (Typ 510)
