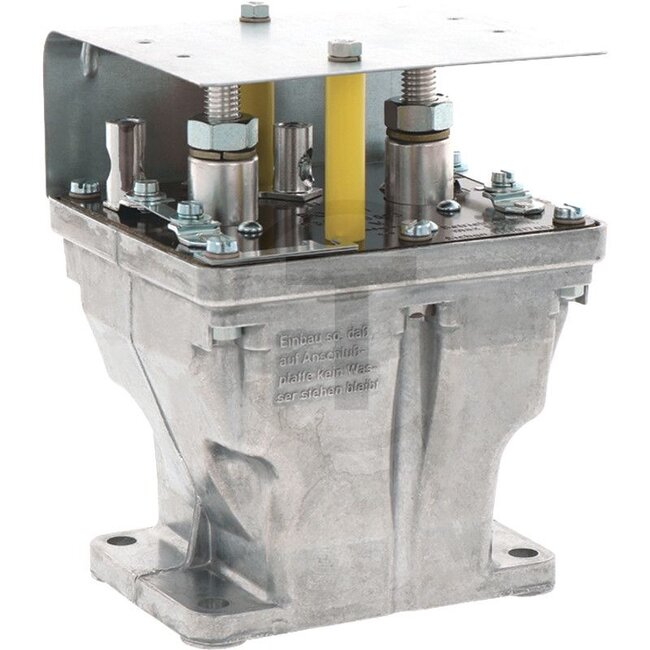

BOSCH Battery changeover relay battery switch 12 V, 75 A, 4 hole Ø 8,4 mm

Name: BOSCH Battery changeover relay battery switch 12 V, 75 A, 4 hole Ø 8,4 mm
Brand: BOSCH
SKU: 2500333300003
Price: 513.29 EUR

€532,96

€513,29 Incl. 21% VAT

€424,20 Excl. VAT

In stock

Replaces: 0333300001, 0333300005, 0333300006, 0333300004. Version: Change-over relay (battery change-over switch ) for series and parallel connection of two 12 V batteries in 12 V systems with 24 V starter. For short-time operation.12 V 1500 A max. 5 sec. Read more.

Worldwide shipping*
Customer rating 9,3/10
30-day return policy
98,000+ technical products

Larger quantity required?

Any questions about this product?

Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

Battery changeover relay

Replaces: 0333300001, 0333300005, 0333300006, 0333300004

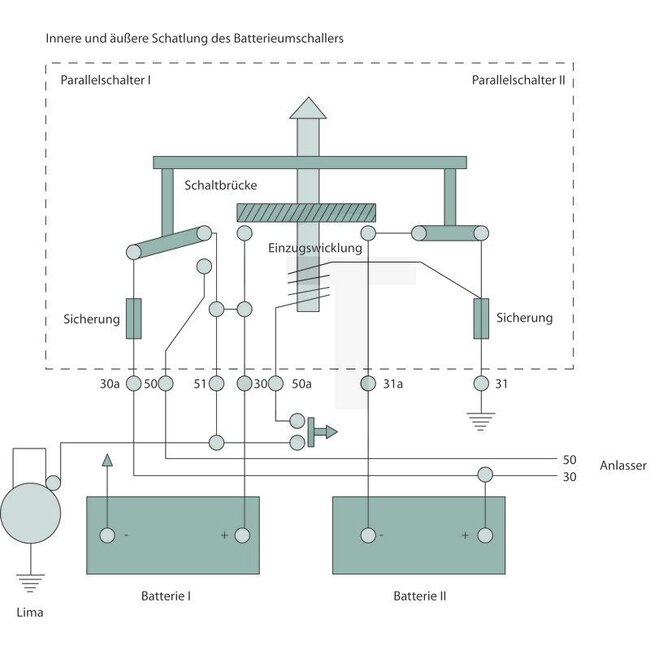

Version: Change-over relay (battery change-over switch ) for series and parallel connection of two 12 V batteries in 12 V systems with 24 V starter. For short-time operation.12 V 1500 A max. 5 sec. Mounting: 4 hole Ø 8.4 mm. Dimensions. 124 x 110 x 160 mm

Passend voor:

Case IH: 333 300 003, 0 333 300 003, 281256017002, 389, Serie Steiger, Steiger 280 (ASN Z6F105001) (NA), Steiger 330 (ASN Z6F105001) (NA), Steiger 380 (ASN Z6F105001) (NA), Steiger 430 (ASN Z6F105001) (NA), Steiger 480 (ASN Z6F105001) (NA), Steiger 530 (ASN Z6F105001) (NA)

Suitable for:

Case IH: Steiger 280 (ASN Z6F105001) (NA), Steiger 330 (ASN Z6F105001) (NA), Steiger 380 (ASN Z6F105001) (NA), Steiger 430 (ASN Z6F105001) (NA), Steiger 480 (ASN Z6F105001) (NA), Steiger 530 (ASN Z6F105001) (NA)
