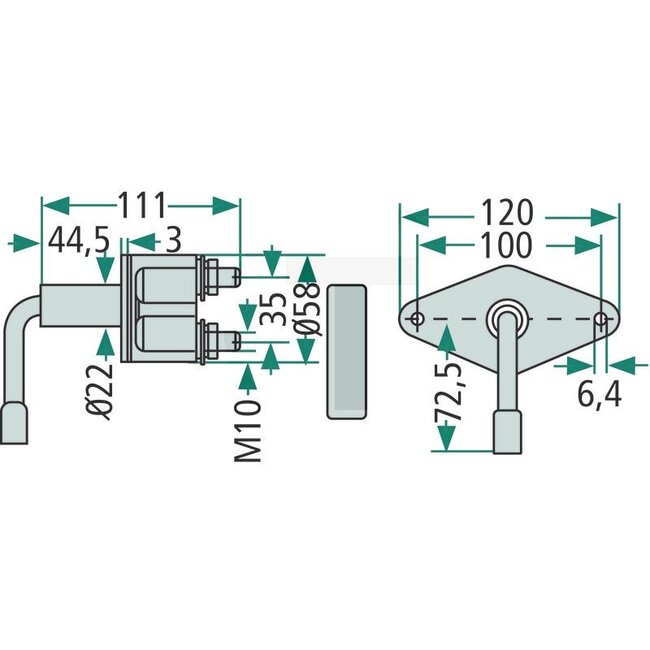

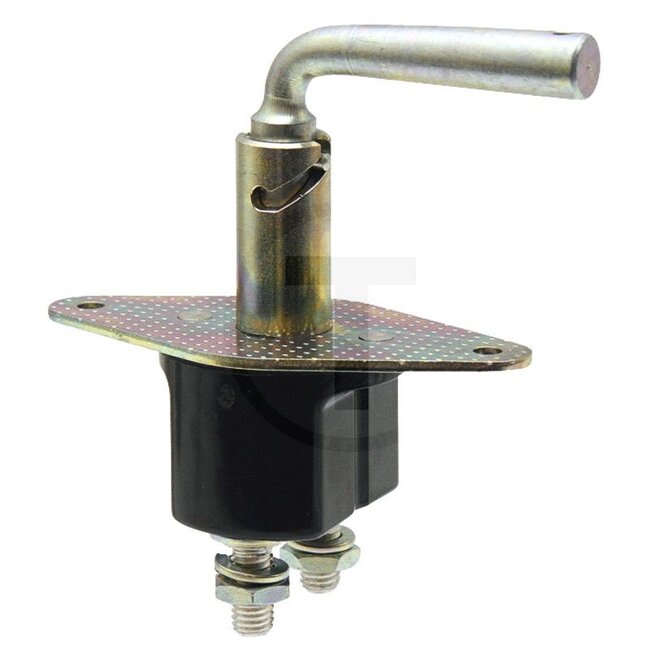

Name: HELLA Battery cut-off switch operated by turning 24 V, 100 A, M10, with key | 6EK001559001
Brand: HELLA
SKU: 4556EK 001559001
Price: 127.65 EUR

HELLA Battery cut-off switch operated by turning 24 V, 100 A, M10, with key | 6EK001559001

Battery cut-off switches Operated by turning: Make contact

Version: For main battery line, with switching key, optional switching for + or - line
Key can be removed in the off position, current flow disconnected
2 screw connections, 2 switch positions: 0: off, 1: on
Power rating at steady state max. 100 A at max. 60°C ambient temperature, and with a cable of at least 50 mm² connected via ring lugs Rotary operation, make contact

Connection thread: M10

Power rating max. 24 V: max. 2500 A/10 sek.

To operate: Operated by turning

Thread pitch: 1.5 mm

Nominal current (A): 100

Switching function: Make contact

Additional information: • With bolts

Mounting type: Bolted

DIN/ISO: 40050, IP53 rear, IPX4 front

Connections: 2

Passend voor:

John Deere: 6EK 001 559-001, AL68661, Serie 11, 1133, 1144, 1157, 1158, 1166, 1169, 1170, 1174, 1177, 1188, Serie 22, 2254, 2256, 2258, 2264, 2266, Serie 50, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3350, 3650, Serie 6000/6000SE, 6100, 6200, 6300, 6400, 6506, 6600, 6800, 6900, SE6100, SE6200, SE6300, SE6400, Serie 6010, 6610, 6710, 6810, 6910, Serie 6010/6010SE, 6110, 6210, 6310, 6410, 6510, 6610, 6810, 6910, 6910S, SE6010, SE6110, SE6210, SE6310, SE6410, SE6510, SE6610, Serie 6030/6030PR, 6930, Serie 6050, 6650, 6750, 6850, 6950, Serie 7000, 7200, 7300, 7400, 7500, 7700, 7800, Serie 7050, 7250, 7350, 7450, 7550, 7750, 7850, 7950, Serie CTS, CTS, CTS II, Serie STS, STS 9880, Serie Z, 2054, 2056, 2058, 2064, 2066

Linde: 6EK 001 559-001, 0019730810, C, C90/5 (318) 09/2008 ->, , C90/6 (318) 09/2008 ->, , C90/7 (318) 09/2008 ->, , C360 (356_c) 07/2001 ->, , C360 (356_c) 11/1995 - 06/2001, C400 (356_c) 07/2001 ->, , C400 (356_c) 11/1995 - 06/2001, C400-10 (356) 03/2006 ->, , C4026CH (357-02) 04/2000 - 04/2004, C4026CH (357-03) 05/2004 ->, , C4026CH (357-05) 09/2008 ->, , C4026CH (1468) 09/2011 ->, , C4030CH (357-02) 04/2000 - 04/2004, C4030CH (357-03) 05/2004 ->, , C4030CH (357-05) 09/2008 ->, , C4030CH (1468) 09/2011 ->, , C4127CH (357-05) 09/2008 ->, , C4127CH (1468) 09/2011 ->, , C4131CH (357-05) 09/2008 ->, , C4230TL (357-02) 04/2000 - 04/2004, C4230TL (357-03) 05/2004 ->, , C4230TL (357-05) 09/2008 ->, , C4234TL (357-02) 04/2000 - 04/2004, C4234TL (357-05) 09/2008 ->, , C4234TL (1468) 09/2011 ->, , C4238TL (357-05) 09/2008 ->, , C4527CH (357-05) 09/2008 ->, , C4527CH (1468) 09/2011 ->, , C4531CH (357-02) 04/2000 - 04/2004, C4531CH (357-03) 05/2004 ->, , C4531CH (357-05) 09/2008 ->, , C4531CH (1468) 09/2011 ->, , C4531TL (357-03) 05/2004 ->, , C4531TL (357-05) 09/2008 ->, , C4531TL (1468) 09/2011 ->, , C4535CH (357-05) 09/2008 ->, , C4535CH (1468) 09/2011 ->, , C4535TL (357-02) 04/2000 - 04/2004, C4535TL (357-05) 09/2008 ->, , C4535TL (1468) 09/2011 ->, , C4536TL (357-05) 09/2008 ->, , C4540CH (357-05) 09/2008 ->, , C4540TL (357-05) 09/2008 ->, , C4540TL (1468) 09/2011 ->, , C4545TL (357-05) 09/2008 ->, , H, #NEW H100 (TEST) 01/1990 ->, , H100 (359) 08/2005 - 12/2007, H100 (359) 11/2007 ->, , H100/600 (1401) 04/2011 - 05/2012, H100/600 (1401) 05/2012 ->, , H100/1200 (1401) 04/2011 - 05/2012, H100/1200 (1401) 05/2012 ->, , H120 (359) 08/2005 - 12/2007, H120 (359) 11/2007 ->, , H120/600 (1401) 04/2011 - 05/2012, H120/600 (1401) 05/2012 ->, , H120/1200 (358) 04/1998 - 10/2007, H120/1200 (358) 12/2009 ->, , H120/1200 (1401) 04/2011 - 05/2012, H120/1200 (1401) 05/2012 ->, , H140 (359) 08/2005 - 12/2007, H140 (359) 11/2007 ->, , H140/600 (1401) 04/2011 - 05/2012, H140/600 (1401) 05/2012 ->, , H140/1200 (358) 04/1998 - 10/2007, H140/1200 (358) 12/2009 ->, , H140/1200 (1401) 04/2011 - 05/2012, H140/1200 (1401) 05/2012 ->, , H150 (359) 08/2005 - 12/2007, H150 (359) 11/2007 ->, , H150/600 (1401) 04/2011 - 05/2012, H150/600 (1401) 05/2012 ->, , H150/1200 (1401) 04/2011 - 05/2012, H150/1200 (1401) 05/2012 ->, , H160 (358) 04/1998 - 10/2007, H160 (358) 12/2009 ->, , H160 (359) 08/2005 - 12/2007, H160 (359) 11/2007 ->, , H160/600 (1401) 04/2011 - 05/2012, H160/600 (1401) 05/2012 ->, , H160/1200 (358) 04/1998 - 10/2007, H160/1200 (358) 12/2009 ->, , H160/1200 (1401) 04/2011 - 05/2012, H160/1200 (1401) 05/2012 ->, , H180 (359) 08/2005 - 12/2015, H180 (359) 11/2007 ->, , H180 (1402) 08/2009 - 08/2012, H180/600 (1401) 04/2011 - 05/2012, H180/600 (1401) 05/2012 ->, , H200 (1402) 08/2009 - 08/2012, H220 (1402) 08/2009 - 08/2012, H250 (1402) 08/2009 - 08/2012, H280 (1402) 08/2009 - 08/2012, H300 (1402) 08/2009 - 08/2012, H320 (1402) 08/2009 - 08/2012, H420 (356) 04/1997 - 06/2001, H420 (356) 07/2001 ->, , H460 (356) 04/1997 - 06/2001, H460 (356) 07/2001 ->,
