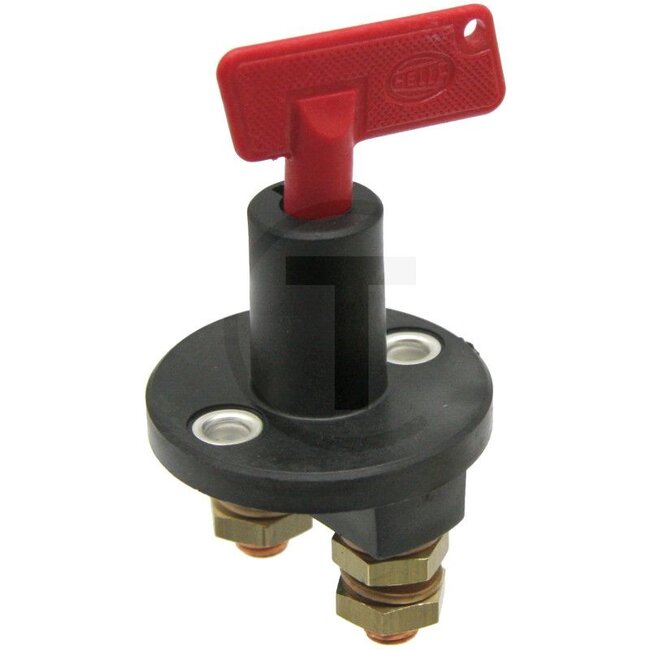

Battery cut-off switches

Operated by turning: Make contact

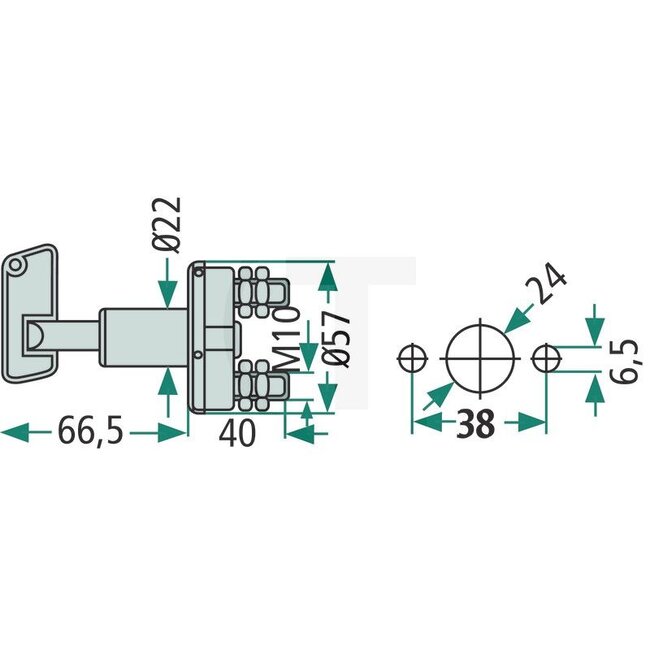

Version: For battery and ignition current, key switch red, optional switching for + or - cable Key switchcan be removed in "off" position Current output interrupted 2 screw terminals, 2 switching positions: 0 = Off, 1 = On Max. load: 1000 A at 12 V (10 sec.) 500 A at 24 V (10 sec.) Load capacity at continuous state is max. 50 A at max. 80°C ambient temperature and a cable of at least 35 mm¬≤ connected with ring tongues.

To fit as:

• Deutz-Fahr M 2480, 2580, 2680, 2685, 2780, 2780H
