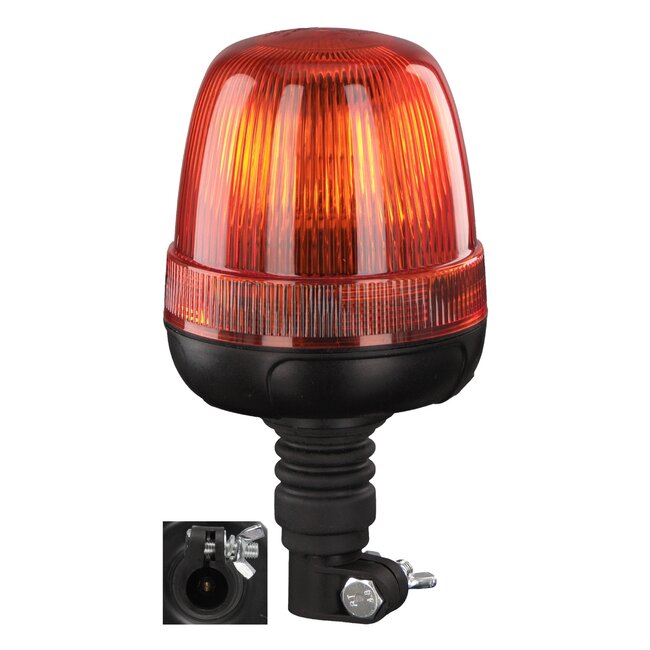

Beacon for pole mounting with a width of 132 mm and a height of 243 mm, for 12 V. The light uses an H1 lamp with a halogen lighting system, with a power of 55 W or 70 W. Connection via DIN flexible and fastening with clamping screw. The housing material is plastic, with protection type IP67 and a temperature range of -30 °C to 50 °C. Voltage 12 V or 24 V. Fulfills ECE norm R10 and R65, with approvals EMC and ADR. Matches original parts from Case IH, Caterpillar, Claas, Deutz-Fahr, Fendt, JCB, John Deere, Komatsu, Kubota, Liebherr, Linde, Manitou, Massey Ferguson, New Holland, Same and Steyr.
Reference numbers:Case IH 0 707481 8, 133700810011, 1-40-181-012, 175048A1, 2018130160, 47108851, 48153502, 82018390, 84337818, Caterpillar 294-2546, Claas 00155500, 007 752 00, Deutz-Fahr 004 14773, Fendt 0080167100000, E 400 017, G339900140010, G339900140020, G380902140020, X830180063000, JCB 332/S0076, John Deere AZ101891, AZ23847, AZ44705, AZ46922, AZ49624, Komatsu 4241 657 M91, 42U0 619 140, AZ101891, Kubota RG03935121, Liebherr 1 047 540 8, 6905 351, 6905 359, Linde 791 905 28 11, Manitou Agrar 946177, Massey Ferguson 132630, New Holland 133700810011, SAME 04414773, Steyr Agrar 133700810011
| Article number | 104043 |
|---|---|
| EAN | 4054224040430 |
| Weight | 755 g |
| Approval | EMC, ADR |
| Connection Type | DIN flexible |
| Fastening Type | Clamping Screw |
| Fulfills ECE Norm | R10 |
| Fulfills ECE Norm | R65 |
| Height | 243 mm |
| Housing Material | Plastic |
| Lighting System | Halogen |
| Light Type | H1 |
| Power | 55 W |
| Power | 70 W |
| Protection Type (IP Code) | IP67 |
| Temperature Range from | -30 °C |
| Temperature Range to | 50 °C |
| Voltage | 12 V |
| Voltage | 24 V |
| Width | 132 mm |
