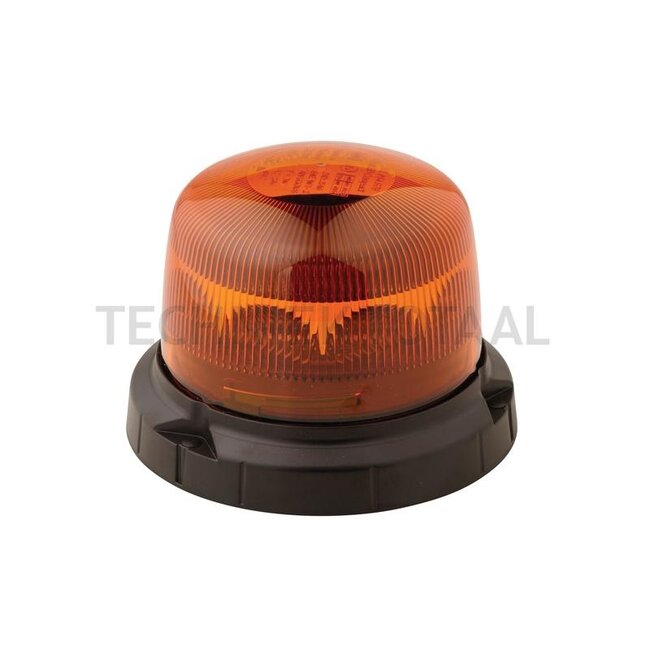

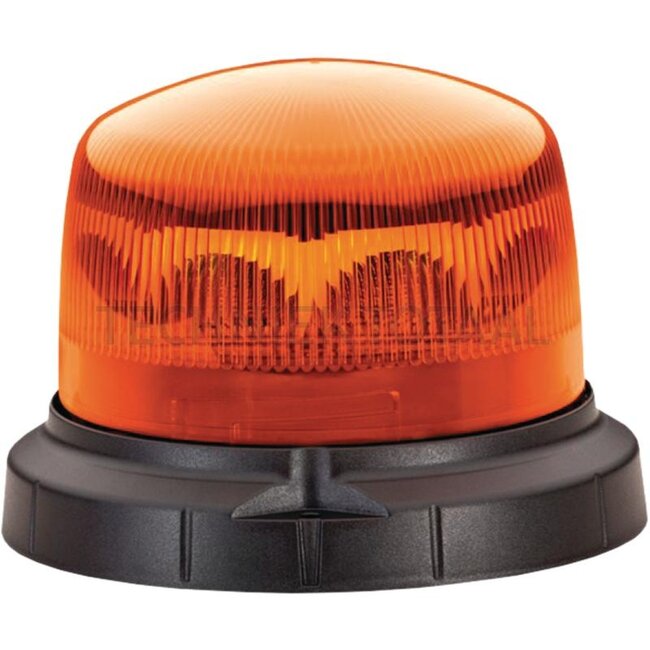

The KL Rota LED Compact beacon has an orange colour, a rotating light function and an outer diameter of 165 mm. The lamp is of the LED type and is mounted by attachment. The nominal voltage is 12 / 24 V, the voltage range 9 - 30 V, the power consumption 7 W and the current requirement 0,6 / 0,3 A. The housing of ABS is black, the light cover is polycarbonate and the total height is 118 mm. The protection class is IP 67, IP X9K.
Reference numbers:2RL 014 979-001
| Article number | 4550018295 |
|---|---|
| EAN | 4082300733365 |
| Weight | 400 g |
| Voltage | 9 - 30 V |
| Material | Housing: ABS | Light cover: polycarbonate |
| Housing colour | Black |
| Total height | 118 mm |
| Nominal voltage | 12 / 24 V |
| Power consumption | 7 W |
| Test mark | ECE-R65 TA1 004837, ECE-R10 058523, SAE J845, class 2, GGVSE/ADR |
| Type | LED |
| Bulb | LED |
| Protection class | IP 67, IP X9K |
| Colour | Yellow |
| Light function | Rotating |
| Outer Ø | 165 mm |
| Mounting type | Mounting |
| Current requirement | 0,6 / 0,3 A |
