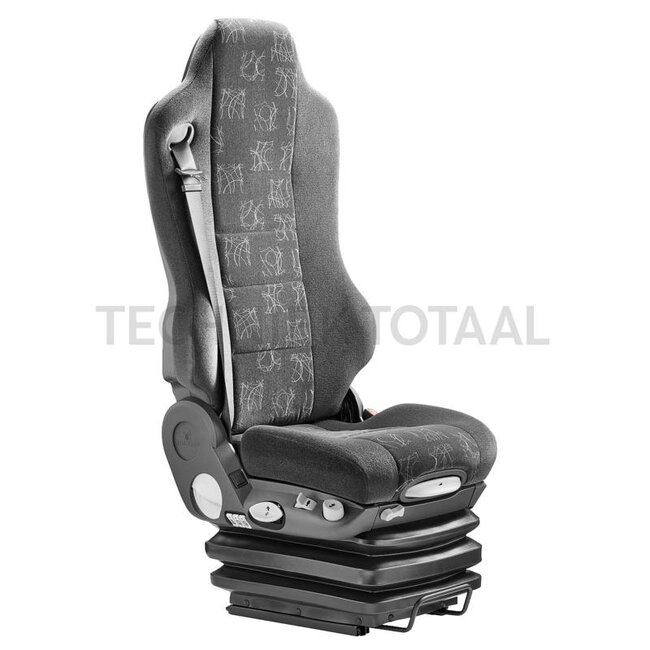

GRAMMER Kingman Basic

MSG90.6PG • To fit DAF | Mercedes-Benz

Replaces: 1142117

Technical data:

• Control panel: Right
• Track gauge (mm): 230
• Version: The KINGMAN driver's seats are ergonomic and offer a high level of comfort. With their tried and tested suspension system and extensive comfort features, they have been reliable companions in trucks for years. Thanks to the GRAMMER Design-for-Use concept, they can be operated intuitively. The shape of the handles indicate their function and direction of operation to the user. All Kingman driver's seats have been awarded the LGA Ergonomics tested certificate. KINGMAN HP STANDARD High comfort even with the entry-level model. Even the standard Kingman model features ergonomically shaped seat and back cushions, side contour adjustment and two-stage lumbar support. The adjustable suspension system with adjustable damper, the lockable fore/aft isolator, the height adjustment with tipping mechanism and automatic weight adjustment, and the quick lowering for easy entry and exit complete the package.
• Notes: Right-hand drive
• Heating/ventilation: No
• Seatbelt lock recognition: No
• Headrest: Yes, integrated
• On-board voltage (V): 24
• Seat width (mm): 550
• Seat type: MSG90.6PG
• Quick lowering: Yes
• • Seat with air suspension • Adjustable damper • Suspension travel 70 mm • Automatic weight adjustment 50 - 130 kg • Height adjustment 100 mm in 8 steps (air-assisted) • Longitudinal adjustment • Fore/aft isolator • Side contour adjustment • Pneumatic lumbar support • Backrest tilt adjustment • Quick lowering • Seat cushion tilt adjustment • Seat cushion depth adjustment <b>• Without armrests (please order these separately)</b>
• To fit: DAF | Mercedes-Benz
• Armrest: Optional
• To fit as models: XF105, CF | Actros I MP1
• Restraint system: Yes
• Weight adjustment: Automatic
• Installation location: Right
• Upholstery type: Fabric
• Suspension: Air suspension
• Description: KINGMAN
• Gauge: 230
