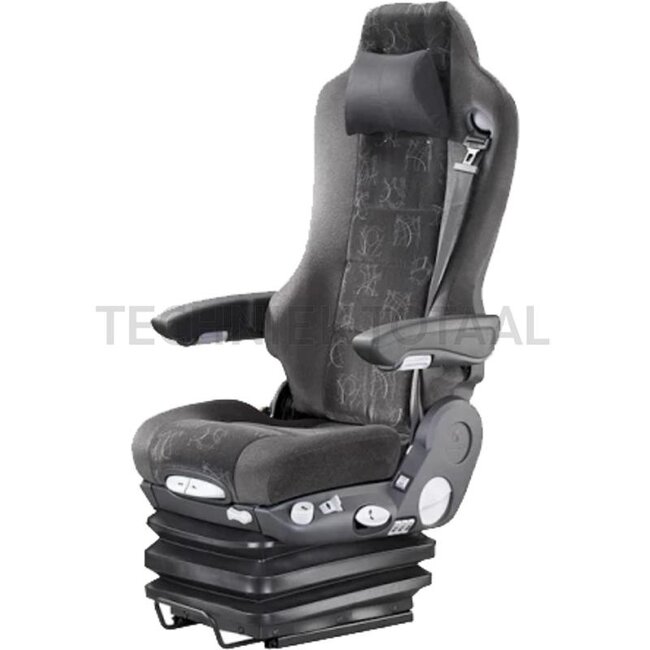

GRAMMER Kingman Comfort

MSG90.6PG • To fit Mercedes-Benz

Replaces: 1 141 886

Technical data:

• Track gauge (mm): 230
• To fit: Mercedes-Benz
• Weight adjustment: Automatic
• Headrest: Yes, integrated
• Seat type: MSG90.6PG
• Version: The KINGMAN driver's seats are ergonomic and offer a high level of comfort. With their tried and tested suspension system and extensive comfort features, they have been reliable companions in trucks for years. The GRAMMER Design-for-Use concept allows them to be operated intuitively. The shape of the handles indicate their function and direction of operation to the user. All Kingman driver's seats have been awarded the LGA Ergonomics tested certificate. KINGMAN HP COMFORT Features additional extras such as seat cushion depth adjustment with individually adjustable length for thigh support. The two-stage seat heater quickly provides warmth in cold weather, and the adjustable and removable neck cushion offers relief for the neck.
• Description: KINGMAN
• Gauge: 230
• Control panel: Left
• Quick lowering: Yes
• Restraint system: Yes
• On-board voltage (V): 24
• Seat width (mm): 550
• Seat heater: Yes
• Installation location: Left
• Eligible: Environmental protection and safety (formerly de minimis)
• Seatbelt lock recognition: No
• • Seat with air suspension • Adjustable damper • Suspension travel 70 mm • Automatic weight adjustment 50 - 130 kg • Height adjustment 100 mm in 8 steps (air-assisted) • Longitudinal adjustment • Fore/aft isolator • Side contour adjustment • Pneumatic lumbar support • Backrest tilt adjustment • Quick lowering • Seat cushion tilt adjustment • Seat cushion depth adjustment • 2-stage seat heater • Neck cushion
• To fit as models: Atego I-II, Axor I-II
• Suspension: Air suspension
• Upholstery type: Fabric
• Armrest: Optional
• Heating/ventilation: Heated
• Fore/aft isolator: Yes
