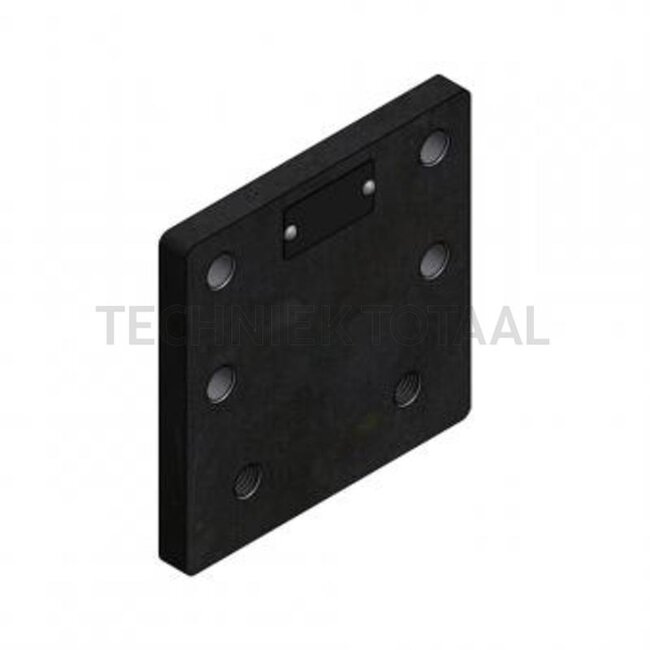

Walterscheid Bolt-on plate

Replaces: 8004954

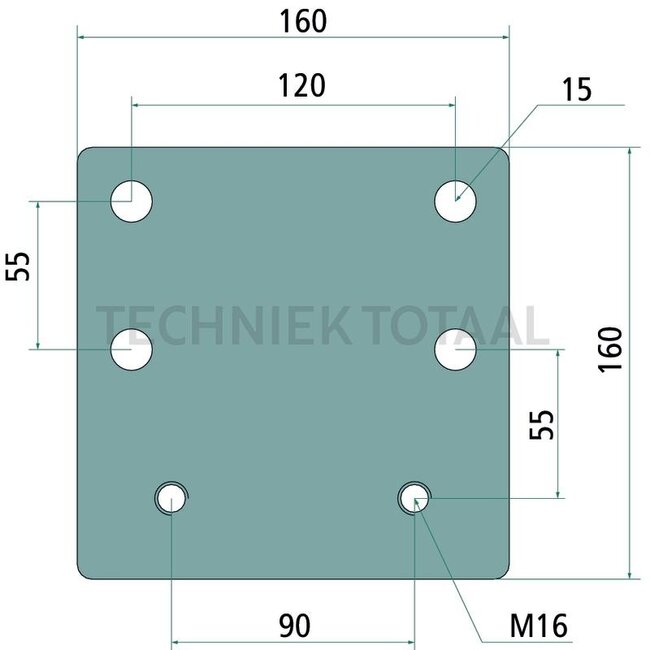

Technical data:

• Thickness (mm): 15
• Spherical flange hole pattern (mm): 90 x 55
• Assembly notes: Additional mounting plates can be designed on request.
• Description: The screw-on plates of type ANP50 are attached to coupling plates (KuP) with the ABG No. M 10036 or the approval e1*2009/144*0480 and can be used in quickly height-adjustable towing brackets. It is also possible suitable for hitch balls with class A50-1 or A50-X brackets. The areas of application include use on agricultural or forestry trailers. Product advantages Suitable for various attachment situations
• No. of holes: 6
• Length (mm): 160
• Thread: M16
• D-value (kN): 20
• Colour: Black
• Hole pattern (mm): 120 x 55
• Width (mm): 160
• Load capacity (kg): 200
