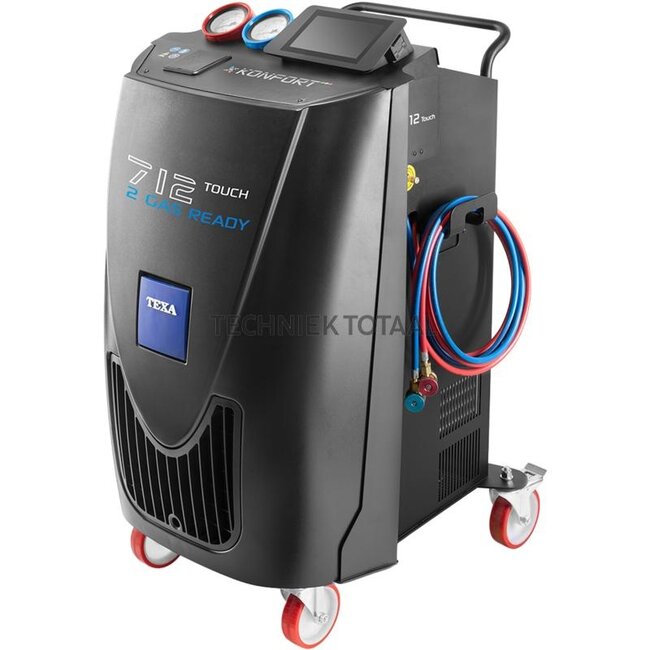

TEXA A/C service unit KONFORT 712 Touch, R134a, without printer

For R134a without printer

Replaces: Z18410

Technical data:

• Description: The 712 TOUCH is a mid-range model that comes with the typical technical features of the high-end models such as; Automatic maintenance control; Recycled oil quantity measured using electronic scale The KONFORT 712 TOUCH is equipped with a 7-inch multi-touch color display. This ensures a high level of user-friendliness and provides a clear overview of all ongoing processes at all times. What's more, the innovative graphic interface was developed to make operation more intuitive, and to make it easier to quickly read all the data displayed. The user-friendliness of the KONFORT TOUCH series is also reflected in the components installed such as the WiFi module. It allows the user to:; Print A4 reports; Receive real-time software and firmware updates; Receive remote technical support; Connect to the myTEXA portal; Connect to the KONFORT mobile app The Bluetooth interface allows the service units to be connected to other accessories such as the efficiency control kit. The service units also have a USB port that can be used to back up the service reports to a USB stick. It can also be used to install updates if the workshop does not have a WiFi network. In addition to the optional built-in graphic printer, the KONFORT 712 TOUCH offers the option of printing A4 service reports via WiFi on any printer in the workshop's WiFi network. The KONFORT TOUCH stations were designed to be extremely functional and to simplify maintenance and filling operations as much as possible. To achieve this goal, the Android 10 Embedded operating system was used, which allows users to quickly become familiar with the operation of the machine using a highly intuitive and visually supported language and a display full of infographics. Software updates are carried out automatically and securely.
• Technical data: Display: 7“ TFT IPS 1024×600 400CD; GPU: Qualcomm© Adreno™ 308 Graphics Processing Unit (GPU) 64-bit; Touch: capacitive touch panel, USB/12C interface; CPU: SC200R Series Snapdragon QCM2150 quad-core, ARM Cortex-A53 64-bit CPU @ 1.3 GHz, STM32F103 - ARM Cortex M3 32-bit CPU; RAM: 2 GB LPDDR3; Memory: 16 GB eMMC; Operating system: Android 10.0; Audio playback: 1 speaker in the unit CES-703116-28PM 8 ohm 2 W; WiFi: 802.11a/b/g/n,150 Mbps, STA/AP/P2P, 2402-2480 MHz, 5 GHz; Bluetooth: 2.1+EDR/3.0/4.1 LE/4.2 BLE 2400-2483.5 MHz; RF performance: 20 dBm; I/O peripherals: USB 2.0 x1; Primary battery: 3 V CR2032; Secondary battery: NiMh 2.4 V - 600 mAh; Refrigerant/group: R134a / 2, R456a / 1, R1234yf / 1; Electronic refrigerant scale (precision) (g): ± 10; Electronic oil and UV agent scale (resolution) (g): 1 (oil drain only); Pressure transducer: class 1.0; High pressure gauge (mm): Ø 80; Low pressure gauge (mm): Ø 80; Filter assembly: 1 combined filter + mechanical filter; Compressor (airtight) (cc): 12; Vacuum pump: 100 l/m, double-stage, final pressure 0.03 mbar; Ambient temperature sensor (resolution) (°C): 1; Refrigerant purity (kg): 150 (SAE J2099); Recycling rate: > 95% (SAE J2788 / SAE J2843); Maximum working pressure (PS) (bar): 20; Calibration of the safety device (bar): 20; Voltage (V): 230; Frequency (Hz): 50 (50 / 60); Power (W): 770; Working temperature (TS) (°C): 5 ÷ 40; Temperature memory (°C): - 25 ÷ 60; Dimensions (mm): 598 x 1101 x 706
• Agricultural database: Yes
• Suitable for refrigerant: R134a
• Operating mode: DATABASE; MANUAL OPERATION; MY DATABASE; DATABASE; Multilingual software; Automatic compensation for the length of the service hoses; Automatic maintenance notification; Simplified maintenance; Automatic condensate drain; Built-in refrigerant analyser
• Filling cylinder storage (kg): 10
• Areas of application: For systems with refrigerant:; R134a; In cars; In lorries; In agricultural machinery
• Refrigerant recycling rate (%): über 95 %
• Length of service hoses (m): 3
• Additional information: Printer not included.
• Printer included: No
