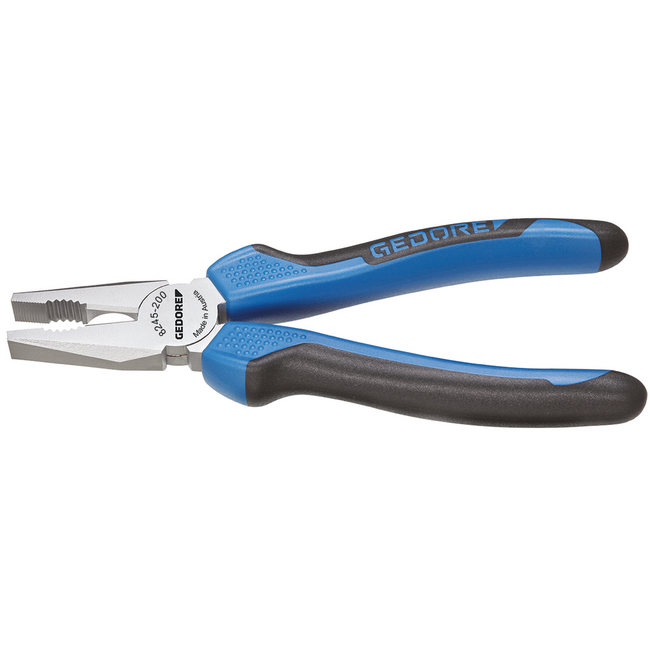

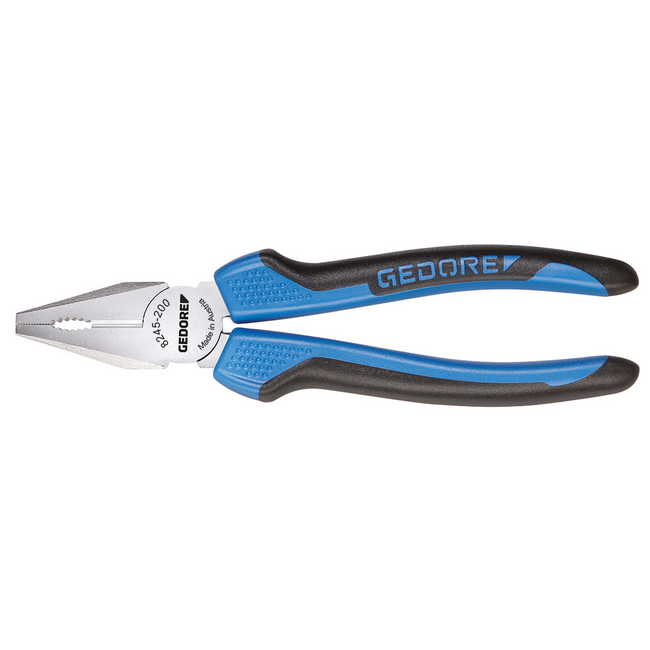

All-purpose 180 mm combination pliers with a slim head for tight spots, flat jaws for round and flat stock, and cutting edges for wire up to 3.4 mm.

• Acc. to DIN ISO 5746
• Universal model with slimline head, ideal for confined spaces
• Induction-hardened precision cutting edges, hardness 62 - 64 HRC
• For round and flat material
• For medium-hard wire 1.6 mm
• GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
• Version JC = chrome-plated, with 2-component grip covers

Technical data

• Item number: 8245-180 JC
• EAN: 4010886673317
• Total length: 180 mm
• Total width: 53 mm
• Total height: 22 mm
• Weight: 0.26 kg
• Material: Heat-treated steel
• Width of head 1: 27 mm
• Standard: DIN ISO 5746
• Handle design: 2K
• Cutting values: Hard wire: 2.2 mm / 11 AWG Medium hard wire: 3.4 mm / 8 AWG Soft wire: 5 mm / 4 AWG Cu cable, multi wire cross section: 16 mm² Multi-wire cable Ø: 12 mm
• Hardness of cutting edge: 62-64 HRC
• Jaw length L3: 38 mm
• Joint types: inserted joint
• Blade shape: with facet
• Head Thickness T1: 9.8 mm
• Handle colour: blue
• Jaw shape: flat jaws
• Tip Width W4: 6.4 mm
• Hardening process: Induction hardened
• Bevel: with
