Product description

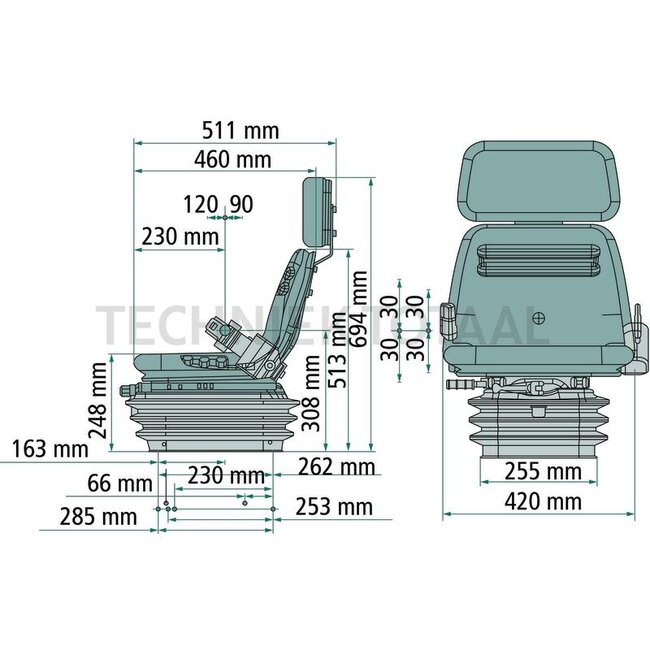

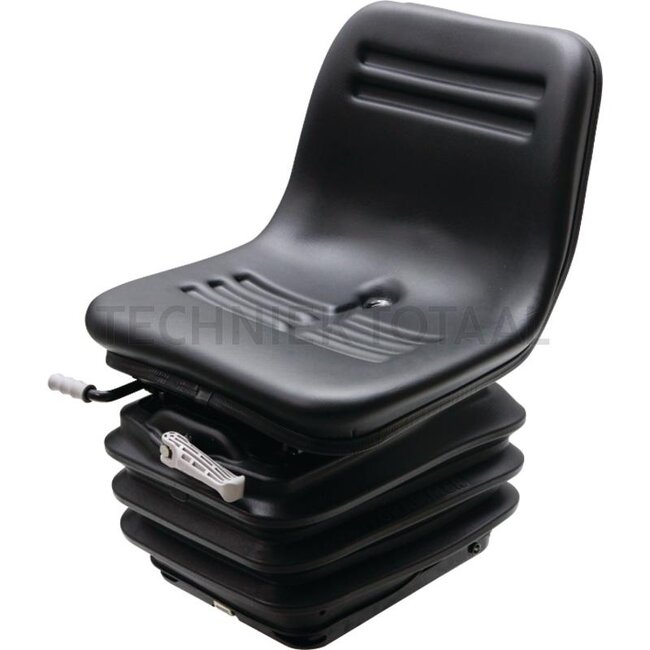

Compacto Basic XS MSG283/8
Suspension: Mechanical
Upholstery type: PVC
Track gauge (mm): 225
Seat width (mm): 420
Restraint system: Optional
Length (mm): 511
Height (mm): 513 → 694
Seat type: MSG283/8
Technical data: • Comfort seat with mechanical scissors-type suspension • Suspension travel: 60 mm • Height adjustment 60 mm (mechanical) • Weight adjustment range of 50 - 130 kg • Longitudinal adjustment • Seat cushion width: 420 mm
Version: The Compacto Basic XS is equipped with mechanical scissors-type suspension with a horizontal tension spring assembly. The system offers a suspension travel of 60 mm. The combined weight and height adjustment is operated by the knob mounted at the front. An additional height limiter enables use even in very low cabs.
