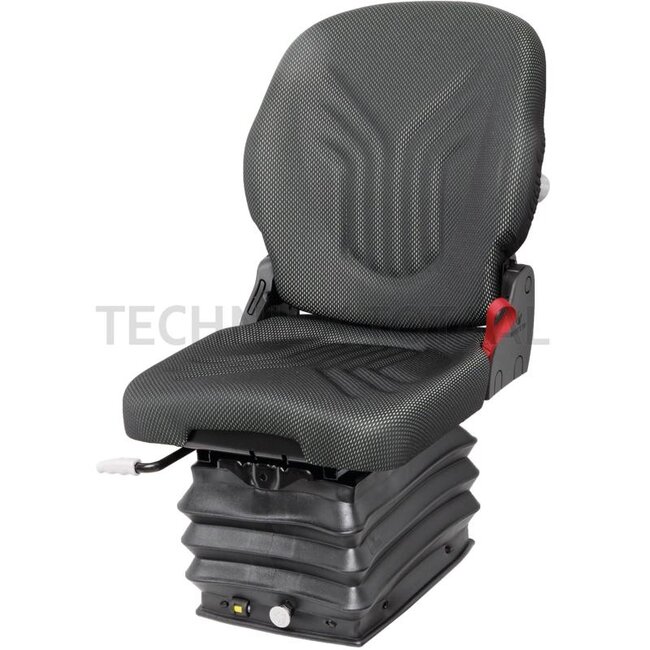

GRAMMER Compacto Comfort S

MSG93/511

Technical data:

• Lordosenstütze: Mechanical
• Suspension: Air suspension
• On-board voltage (V): 12
• • Comfort seat with air suspension and 12V compressor • Suspension travel 80 mm • Height adjustment 60 mm, continuous (air-assisted) • Weight adjustment, adjustment range 50 - 130 kg • Longitudinal adjustment 180 mm • Mechanical lumbar support • Backrest and tilt adjustment • Seat cushion width 400 mm • With fore/aft isolator
• Fore/aft isolator: Optional
• Version: The Compacto Comfort S combines GRAMMER's typical suspension, seating and operating comfort in a very small space. The seat can be adjusted with one hand. The air suspension is equipped with combined weight and height adjustment. An easy-to-read display band guarantees that the remaining suspension travel is within the green range regardless of the driver's weight.
• Restraint system: Optional
• Upholstery type: Fabric
• Rückenverlängerung: Optional

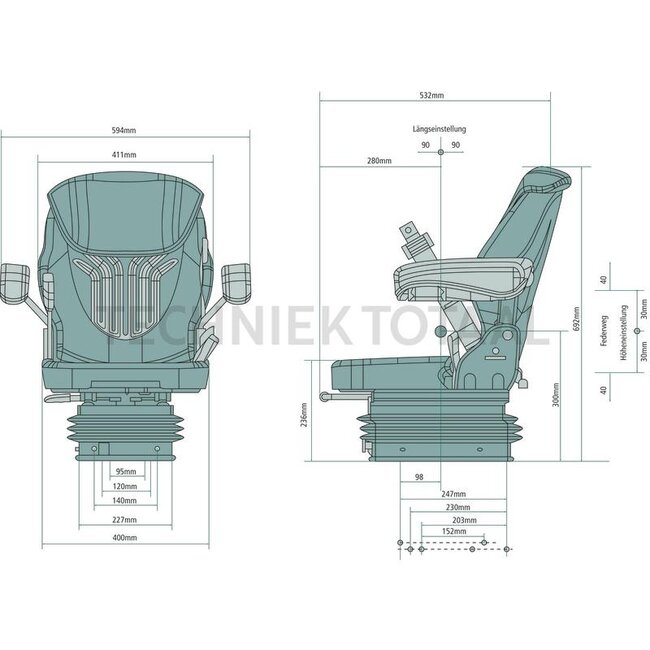

• Track gauge (mm): 225
• Seat width (mm): 400
• Length (mm): 532
• Seat heater: Optional
• Seat contact switch: Yes
• Seat type: MSG93/511
• Armrest: Optional
• To fit: Case, Steyr, New Holland, Deutz, Same
• Height (mm): 692
